Taw qhia

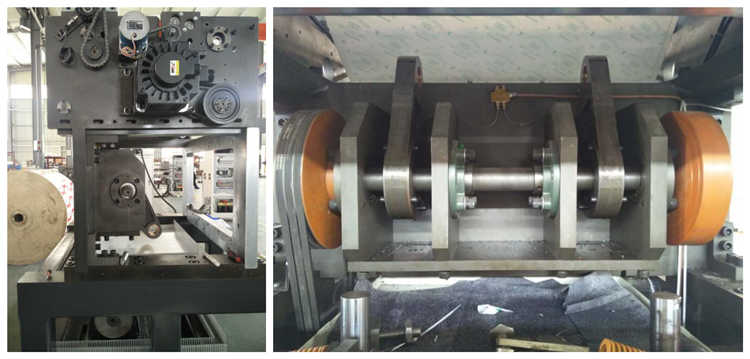

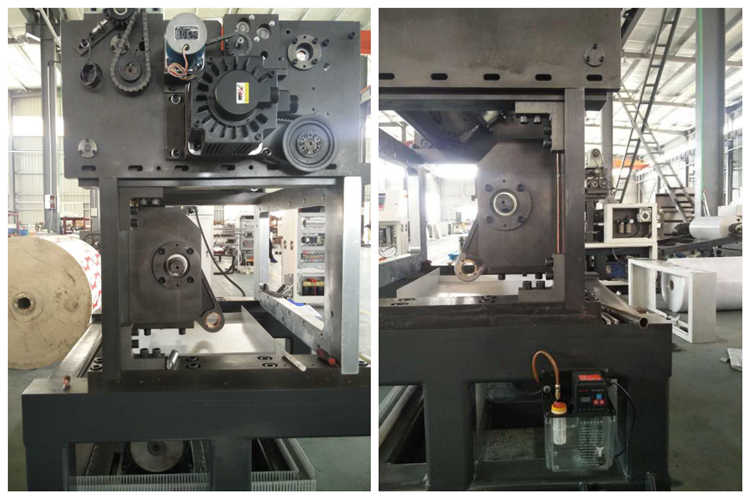

Daim Ntawv Txiav Tshuab yog ib hom ntawv txiav cov cuab yeej siv nrog ntau yam kev siv. Nws kuj yog ib yam khoom siv rau cov ntawv zeb, cov chaw luam ntawv, thiab lwm yam lag luam. Vim txoj kev loj hlob sai ntawm kev lag luam ntawv, peb cov khoom kuj muaj kev cia siab dav. Ntxiv rau kev ua cov ntawv zoo tib yam, peb cov khoom kuj tseem siv tau rau kev txiav tawv, yas, thiab lwm yam ntaub ntawv. Cov khoom yog tsim los ntawm lub mainframe, workbench, paper pushing mechanism, paper pressing mechanism, cutting mechanism, etc. Daim ntawv yuav raug kho kom zoo nyob rau hauv txoj hauj lwm ruaj khov, yog li qhov kev txiav raug siab heev. Koj tsuas yog yuav tsum tau nkag mus rau qhov tsis sib xws hauv kev ua haujlwm interface kom ua tiav cov txheej txheem.
Nta
Daim Ntawv Txiav Tshuab yog nruab nrog lub microcomputer tswj qhov system, cov lus txhais ua haujlwm siab, lub khoos phis tawj pabcuam, thiab lwm yam, yog li nws muaj qhov raug txiav siab thiab ua haujlwm siab.
Cov neeg tsav tsheb sib txawv ntawm lub cev muaj zog muab lub zog muaj zog, tuaj yeem paub qhov hloov pauv ceev, thiab tuaj yeem txuag hluav taws xob.

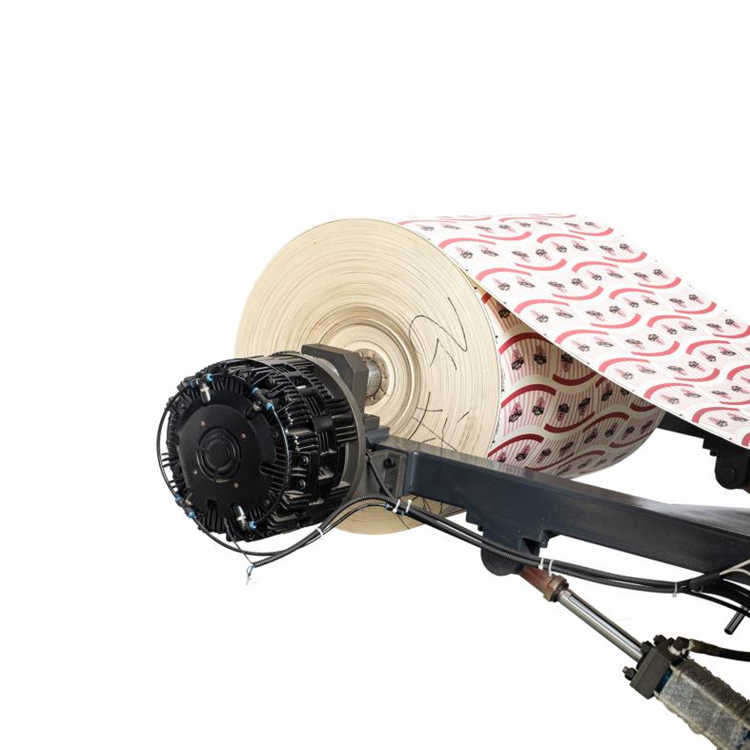

Lub unwinding tsim ntawm lub nruas pneumatic tuaj yeem tswj tau qhov nrawm nrawm los ntawm kev nro kom cov khoom ceev tuaj yeem tswj tau.
chrome-plated ua hauj lwm platform yog ntau ruaj, txuag cov neeg siv lub sij hawm txij nkawm thiab ncua nws cov kev pab cuam lub neej.
TSIS MUAJ. | KHOOM PLIG | QUALITY | Tus nqi PRICE |
1 | Roll Tuag Punching Tshuab | 1 | |
Ntxiv pwm | 1 |
Lus ceeb toom:
1.Nqe Sijhawm: Ningbo chaw nres nkoj, Suav teb
2.Lub sij hawm them nyiaj:TT (30% tso nyiaj, tshuav 70 feem pua ua ntej xa khoom)
3) Lub sij hawm xa tuaj: 45hnub ua haujlwm tom qab tau txais qhov tso nyiaj (tom qab typeetting paub tseeb)
4) Kev pab cuam tom qab muag:
1. Cov khoom seem lav rau ib xyoos txij li hnub teeb tsa.
2. Xa tus kws kho mob rau kev teeb tsa & kev cob qhia. Tus neeg yuav dais tus nqi (daim pib ncig, chaw nyob, thiab nyiaj pub dawb ntawm 100USD ib hnub)
5) Daim ntawv pov thawj: CE, ISO
Technical Specification
| Qauv | FDC{0}}x450 |
Max txiav dav | 1200 |
Txiav precision | ± 0.15 hli |
Daim ntawv hnyav | 150-400g/㎡ |
Muaj peev xwm ntau lawm | 330-350times/min |
Cua siab xav tau | 0.5Mpa |
Cua siab noj | 0.25m³/min |
Tag nrho lub zog | 10 kwv |
Qhov hnyav | 5.0T |
Max roller txoj kab uas hla | 1500 hli |
Dimension | 3500x1900x1900 |

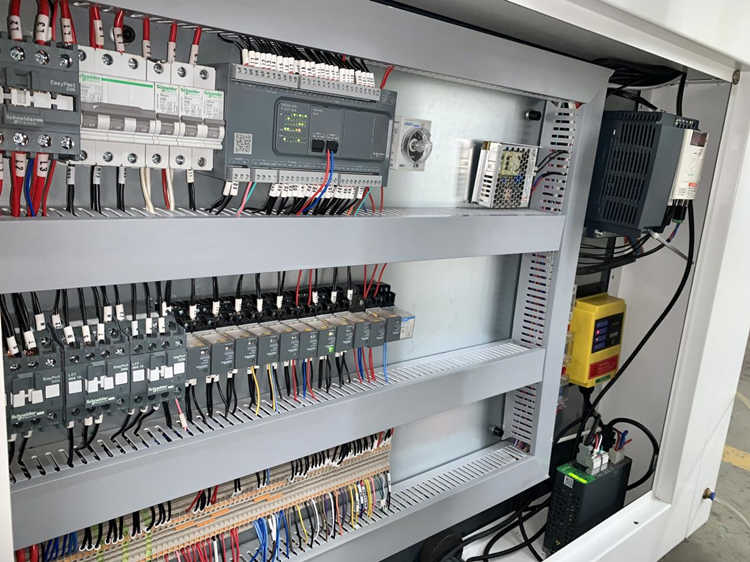

Hluav taws xob Configuration
| PLC | Taiwan Delta |
Servo Tsav | Taiwan Delta |
Kov npo | Flexem SHANGHA |
Zaus converter | Schneider |
Hloov | Eaton |

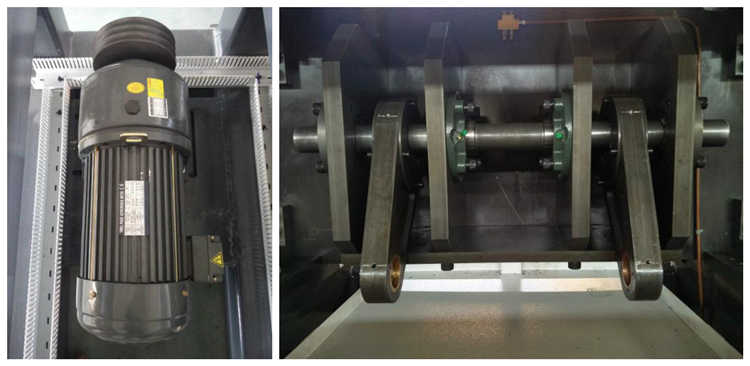

Main lub cev muaj zog | JIANGSU |
Pub lub cev muaj zog | JIANGSU |
Contactor | Eaton |
Relay | Weidmuler |
Khawm | Eaton |
Pwm | Austria |

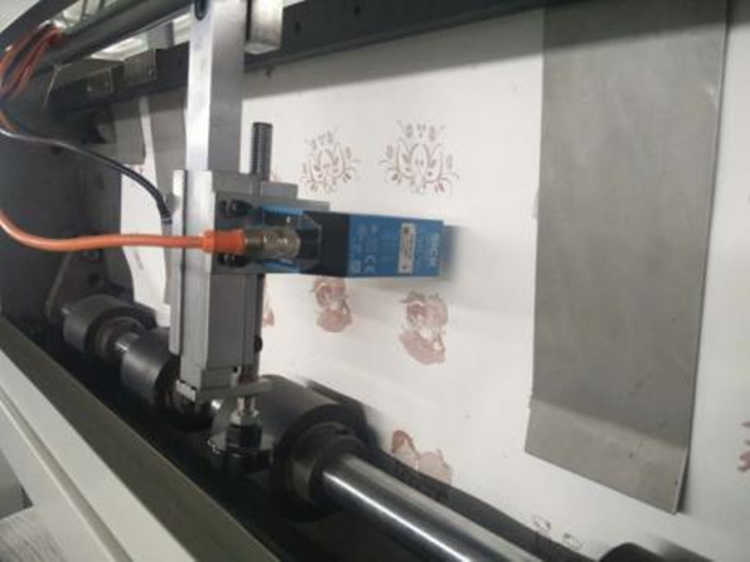

Xim sensor | Mob |
Cov txheej txheem ua haujlwm
1. Tus neeg teb xov tooj yuav tsum paub txog qhov ua tau zoo thiab cov ntsiab lus kev nyab xeeb ntawm Daim Ntawv Txiav Tshuab, thiab tsuas yog tuaj yeem ua haujlwm ntawm daim ntawv txiav tom qab dhau qhov kev xeem.
2. Ua ntej yuav mus ua haujlwm, cov neeg ua haujlwm yuav tsum hnav cov khaub ncaws ua haujlwm, nruj lub cuffs, txwv tsis pub cov plaub hau ntev, thiab hnav khau khiab, tiab, thiab cov hniav nyiaj hniav kub.
3. Ua ntej pib txhua lub sijhawm, xyuas seb qhov hloov pauv puas zoo li qub thiab txhim khu kev qha. Sim cov riam khoob peb zaug ua ntej, saib yog tias muaj riam rov qab, thiab yog tias qhov hloov pauv tau pom tias muaj qhov txawv txav, nws tuaj yeem siv tau tom qab kev saib xyuas kev tshaj lij.

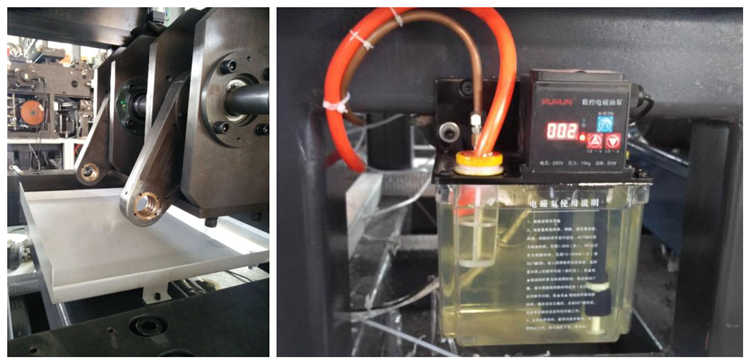

4. Ua ntej pib, sau tag nrho cov ntsiab lus lubricating ntawm daim ntawv txiav nrog cov ntawv sau cov roj lubricating. Nws yog ib qho tsim nyog yuav tsum tau xyuam xim rau ib puag ncig ib puag ncig thiab seb lwm yam kev tu vaj tse yog nqa tawm ntawm lub tshuab.
5. Tshawb xyuas seb lub hauv nruab nrab ntawm lub lubrication system, cov nyees khawm nres thaum muaj xwm ceev, thiab cov khoom siv kev nyab xeeb ntawm cov cuab yeej yog qhov qub.
6. Nws yog txwv tsis pub muab cov cuab yeej thiab lwm yam khoom rau saum lub tshuab.
7. Thaum txhim kho lossis tshem cov hniav, siv phau ntawv ua haujlwm. Tsuas yog tom qab lub ntsiab lub cev muaj zog nres tag tuaj yeem tig mus rau lub cuab yeej hloov pauv txoj haujlwm.
8. Thaum kho qhov tob, ua ntej kho cov ntawv txiav, thiab tom qab ntawd ua tib zoo kho qhov tob ntawm lub sawb los ntawm qhov tob mus rau qhov tob.
9. Tom qab lub ntug ntawm cov hniav yog passivated, cov hniav yuav tsum tau hloov tam sim ntawd kom tsis txhob muaj load ntau dhau ntawm lub tshuab thiab kev puas tsuaj rau cov khoom.
10. Kev hloov kho siab yuav tsum tsis txhob siab tshaj 60kg / cm2. (Nws feem ntau yog hais txog 45).
