Aluminium hau yob tuag xuas nrig ntaus tshuab yog tsim tshwj xeeb rau kev txiav aluminium ntawv ci lossis lwm yam khoom siv. Nws muaj qhov zoo ntawm kev ua haujlwm siab thiab kev ua haujlwm loj, tab sis nws yuav tsis siv ntau lub zog. Yog li ntawd, lub tshuab no yog thawj qhov kev xaiv rau ntau lub Hoobkas nrog cov nqi peev tsawg. Ntau qhov kev teeb tsa tsis siv neeg tuaj yeem ua tau zoo txo cov txheej txheem kev ua haujlwm kom txuag tau tus nqi zog, thiab cov khoom siv sab hauv yog me me tab sis meej, uas yuav tsis ua suab nrov ntau. Lub tshuab no tuaj yeem ua haujlwm ruaj khov rau lub sijhawm ntev nrog tsuas yog ib qho me me ntawm lubrication, yog li nws cov nqi tu kuj tsawg heev. Txais tos hu rau cov ntsiab lus!
Nta

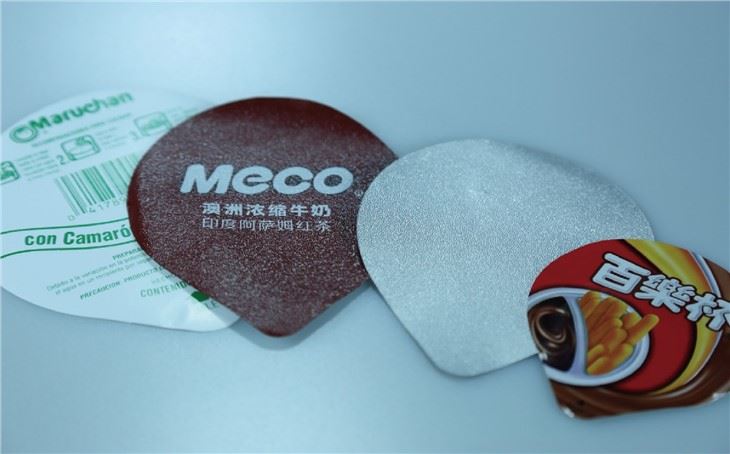

Qhov no aluminium hau yob tuag xuas nrig ntaus tshuab tuaj yeem siv los ua yogurt khob, ice cream poom, instant noodles thoob thiab lwm yam khoom. Vim tias peb xaiv cov khoom siv hlau zoo los tsim nws cov ncej, nws ruaj khov thiab ruaj khov. Lub tshuab no tuaj yeem laum qhov ncaj qha thiab nws txoj haujlwm nrawm nrawm dua li cov txheej txheem ib txwm muaj, thiab PLC tswj qhov system tseem tuaj yeem tshem tawm qhov yuam kev los ntawm kev ua haujlwm ntawm phau ntawv thiab ua kom yooj yim cov txheej txheem ua haujlwm thaum ua kom muaj qhov tseeb. Tsis tas li ntawd, yog tias koj yuav lub tshuab no, nws yuav suav nrog kev txiav pwm dawb. Yog tias koj xav tau lwm tus, koj yuav tsum them tus nqi. Tus qauv voltage yuav tsum muaj raws li nram no: 220V, 50/60HZ, 3 PAHSE (raws li cov neeg yuav tsum tau).
Lus ceeb toom:
1) Nqe Sijhawm: shanghai, Suav.
2) Lub sijhawm them nyiaj: TT (30 feem pua ntawm tso nyiaj, qhov nyiaj tshuav 70 feem pua ua ntej xa khoom)
3) Lub sij hawm xa tuaj: 65 hnub ua haujlwm tom qab tau txais qhov tso nyiaj
4) Kev pab cuam tom qab muag:
1. Cov khoom seem lav rau ib xyoos txij li hnub teeb tsa.
2.Xa tus kws tshaj lij rau kev teeb tsa & kev cob qhia. Tus neeg yuav khoom dais tus nqi (daim pib ncig, chaw nyob, thiab nyiaj pub dawb ntawm 100USD ib hnub).
5) Daim ntawv pov thawj: CE .ISO
Technical Specification
| Qauv | FD-450x400 |
Max txiav dav | 450 |
Txiav precision | ± 0.20mm |
Daim ntawv hnyav | 60-120g/㎡ |
Muaj peev xwm ntau lawm | 120-200times/min |
Cua siab xav tau | 0.5Mpa |
Cua siab noj | 0.25m³/min |
Tag nrho lub zog | 10 kwv |
Qhov hnyav | 3.0T |
Max roller txoj kab uas hla | 1500 hli |
Dimension | 6500x1200x1800mm |

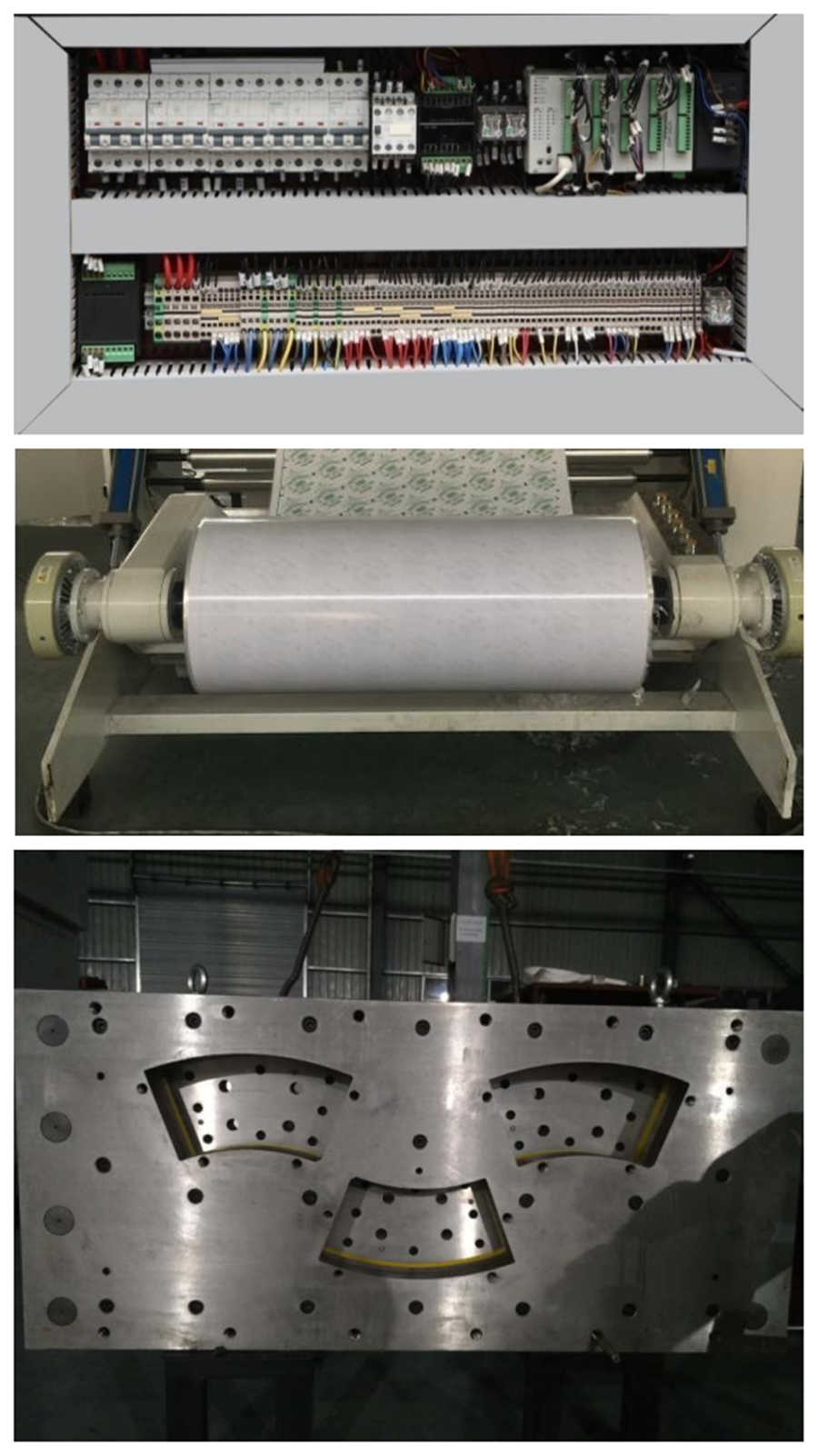

Hluav taws xob Configuration
| PLC | Taiwan Delta |
Servo Tsav | Taiwan Delta |
Kov npo | Taiwan Weinview |
Zaus converter | Taiwan Delta |
Hloov | Taiwan Delta |
Main lub cev muaj zog | Jiangsu Suav teb |
Pub lub cev muaj zog | Jiangsu Suav teb |
Contactor | Eaton |
Relay | Weidmuler |
Khawm | Eaton |
Kev tu
· Xyuas kom meej tias lub hau aluminium yob tuag punch yog moistened nrog lubricating roj rau lub sij hawm ntev.
· Ntxiv cov roj nplua nyeem zoo tsis muaj xim thiab ya raws.
· Cov cua compressed yuav tsum qhuav, thiab lub solenoid valve tsis tuaj yeem raug dej nyab.
· Txhawm rau kom lub neej ntawm txhuas lub hau yob tuag punch, thov tsis txhob ntaus lub punch nrog cov khoom tawv.
· Ua ntej siv, xyuas kom meej tias tsis muaj qhov txawv txav ntawm lub punch thiab qhov qis tuag.
· Yog hais tias lub yob tuag punching tshuab tsis siv ntev, nws yuav tsum tau muab cia rau hauv qhov chaw qhuav thiab xyuas kom meej tias cov punch yog moistened nrog lubricating roj.
Cim npe nrov: aluminium hau yob tuag xuas nrig ntaus tshuab
