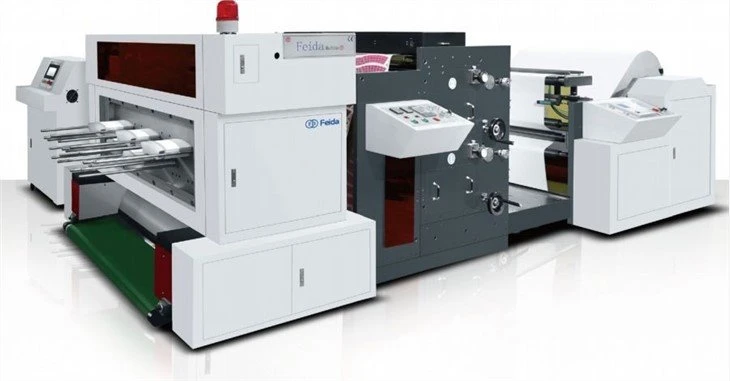

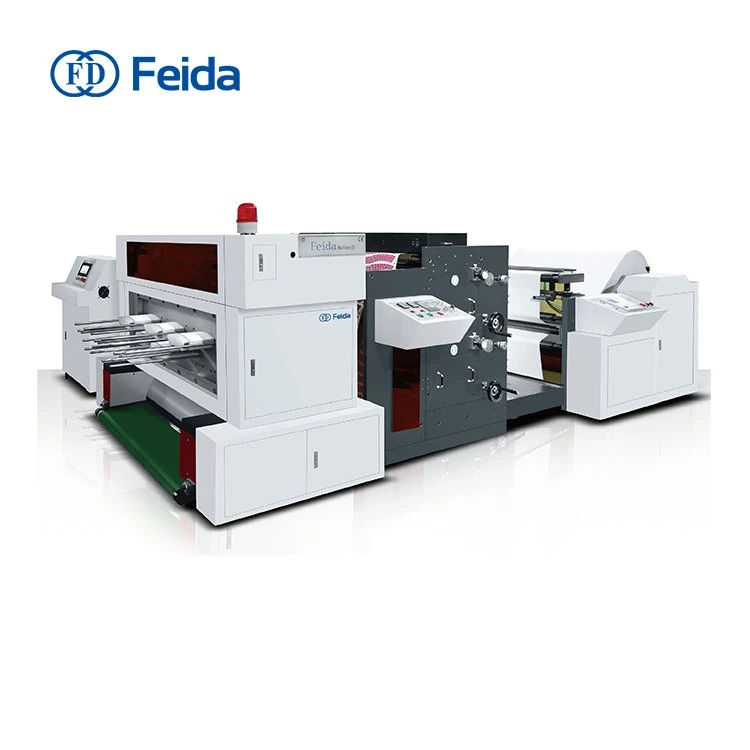

Qhov noyob tuag xuas nrig ntaus tshuab inline flexo luam ntawvtuaj yeem paub txiav thiab luam tawm ib zaug. Rau ib txheej PE, nws tuaj yeem ua tau yooj yim, thaum rau ob chav PE txheej, nws tuaj yeem ua tiav tau yooj yim los ntawm kev ntxiv corona ib feem. Lub tshuab no tsis tsuas yog yooj yim rau kev khiav lag luam, tab sis kuj tuaj yeem pab koj txuag nqi zog vim nws tuaj yeem muab ob txoj haujlwm thiab nruab nrog tib neeg-tshuab ua haujlwm interface. Nws yog tshwj xeeb tshaj yog haum rau cov neeg muas zaub uas muaj ob peb hom khoom thiab siab thov rau ib yam khoom. Yog tias koj muaj kev xav tau, thov hu rau peb cov neeg muag khoom. Lawv yuav tsim lub tshuab teeb tsa thiab tsim cov phiaj xwm raws li koj xav tau tiag tiag.
Nta
1) Qhov no yob tuag xuas nrig ntaus tshuab inline flexo luam ntawv siv anilox cov menyuam rau lub tsho tiv no.
2) Lub unwinding nro yog tswj los ntawm qhov tsis siv neeg nro tswj ntawm Mitsubishi Corporation ntawm Nyiv.
3) Txhua chav luam ntawv yog 360 degree ua raws.
4) Txhua chav luam ntawv muaj lub tshuab ziab khaub ncaws infrared
5) Cov menyuam roj hmab tuaj yeem txiav tawm thaum nres tsheb thiab khiav ntawm qhov ceev kom tsis txhob muaj number case qhuav.
6) Lub cev muaj zog tseem ceeb tau txais kev hloov pauv hloov pauv tsis hloov pauv ceev tswj.
7) Unwinding, ntawv qhia, luam ntawv, infrared ziab thiab xuas nrig ntaus tuaj yeem ua tiav hauv ib txheej txheem.
Lus ceeb toom:
1) Nqe Sijhawm: Ningbo chaw nres nkoj, Suav teb.
2) Lub sijhawm them nyiaj: TT (30 feem pua ntawm tso nyiaj, qhov nyiaj tshuav 70 feem pua ua ntej xa khoom)
3) Lub sij hawm xa tuaj: 60 hnub ua haujlwm tom qab tau txais qhov tso nyiaj
4) Kev pab cuam tom qab muag:
1. Cov khoom seem lav rau ib xyoos txij li hnub teeb tsa.
2. Xa tus kws kho mob rau kev teeb tsa & kev cob qhia. Tus neeg yuav khoom dais tus nqi (daim pib ncig, chaw nyob, thiab nyiaj pub dawb ntawm 100USD ib hnub).
Technical Specification
| Qauv | FD850 * 450 |
Max txiav dav | 8 50mm |
Txiav precision | ± 0.20mm |
Daim ntawv hnyav | 150-350g/㎡ |
Muaj peev xwm ntau lawm | 300-350times/min |
Cua siab xav tau | 0.5Mpa |
Cua siab noj | 0.25m³/min |
Tag nrho lub zog | 20 kwv |
Punching hnyav | 2.5T |
Max roller txoj kab uas hla | 1500 hli |
Dimension | 5500x1700x1800mm |
Hluav taws xob Configuration
| PLC | Taiwan Delta |
Servo Tsav | Taiwan Delta |
Kov npo | FLEXEM |
Zaus converter | Schneider |
Hloov | Taiwan Delta |
Main lub cev muaj zog | Taiwan |
Pub lub cev muaj zog | Taiwan |
Contactor | Eaton |
Relay | Weidmuller |
Khawm | Eaton |

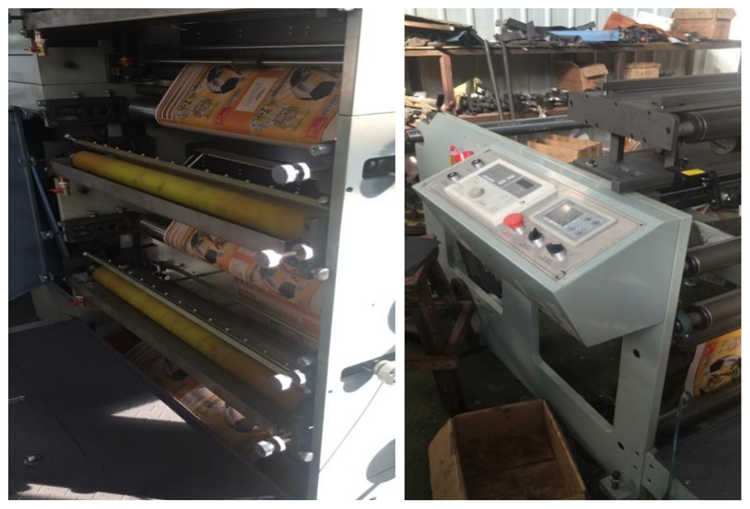

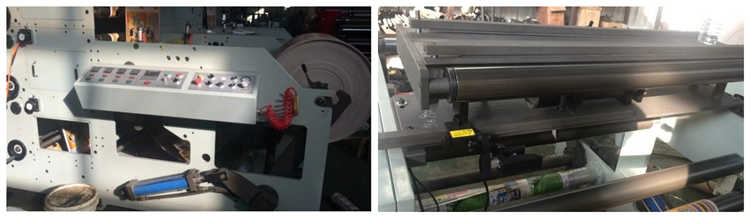

Kev luam ntawv ib feem
Lub ntsiab technical parameters:
| Web dav | 8 50mm |
Sau dav | 8 40mm |
Unwind Diameter max | 1200 hli |
Xovxwm Ceev max (Sau ceev nyob ntawm cov txheej txheem, txoj hauj lwm thiab lwm yam) | 80m / min |
Gear Pitch | 1/8 "(3.175mm) |
Flexo Print Units (IR tshuab ziab khaub ncaws): | Nyob ntawm xim tsev |
Min.Max rov luam lub tog raj kheej | 10" - 22.5" |
Web Guide: Number | 1 |
Overprint precision | ± 0.15 hli |
Tshuab hnyav | 3500kg ib |
Qhov hluav taws xob | 3 theem 380V, 50HZ |
Txoj kab uas hla ntawm cua shafts | 76mm ib |
Thickness ntawm printing phaj | 1.7mm ib |
Thickness ntawm phaj mounting daim kab xev | 0.38 hli |
Qhov loj ntawm luam ntawv lub tog raj kheej thiab ceramic anilox cov menyuam kuj yuav tsum tau qhia rau peb. | |
| Ceramic anilox roller | 200-1000, Nyob ntawm cov neeg siv khoom xim |
Cov menyuam luam ntawv | Nyob ntawm cov neeg siv khoom xim chav tsev |
Unwinding nro controller | |
Sib nqus hmoov nres | |
Kub tswj | |
Main lub cev muaj zog | |
Hloov | |
Khawm | |
Txhua qhov hluav taws xob qis qis | |
Web qhia |
