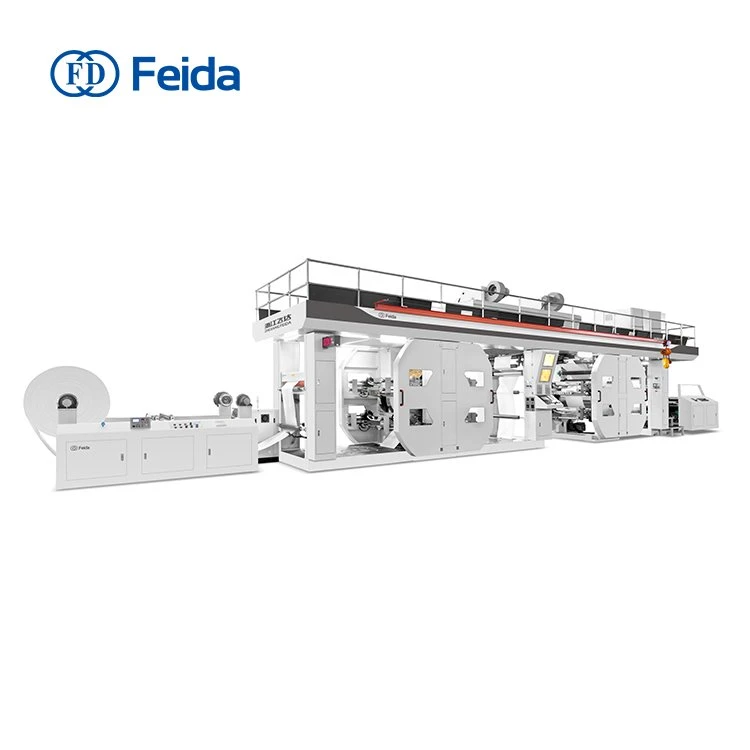

Lub hnab ntim tshuab luam ntawv tshwj xeeb yog tsim los muab kev luam ntawv zoo nkauj rau saum npoo ntawm ntau lub hnab ntim khoom. Ua tsaug rau qhov kev tswj xyuas ruaj khov, nws tuaj yeem muab cov tshuab luam ntawv ruaj khov thiab zoo luam ntawv zoo. Lub tshuab tag nrho yog tswj los ntawm lub computer, yog li qhov kev luam ntawv raug tau raug txhim kho ntxiv, thiab qhov tseeb ntawm 0.01 hli tuaj yeem ua tiav thaum kuaj qhov sib luag thiab ncaj. Tsis tas li ntawd, cov khoom tseem ceeb thiab kev tswj xyuas yog los ntawm cov npe nrov, ruaj khov thiab tsis ua haujlwm tsawg. Lub tshuab no tuaj yeem pab koj ua kom yooj yim rau cov txheej txheem luam ntawv tsis yooj yim thiab ua kom muaj txiaj ntsig zoo tshaj plaws ntawm kev luam ntawv rhiav. Yog tias koj xav paub ntau ntxiv, thov koj xav tiv tauj peb.
Nta
Lub hnab ntim tshuab luam ntawv no yog ua los ntawm cov hlau zoo los ntawm kev ua haujlwm precision, aiming kom muaj kev ruaj ntseg, robustness thiab durability ntawm tag nrho cov tshuab. Lub hom phiaj tseem ceeb ntawm kev ua haujlwm siab servo lub cev muaj zog yog los xyuas kom muaj kev ruaj ntseg thiab kev nyab xeeb ntawm cov txheej txheem luam ntawv, thiab nws yuav tsis ua rau tsis ua haujlwm ntau. Lub tshuab no kuj tau nruab nrog lub tshuab tsis siv neeg, uas yog nruab nrog cov cuab yeej tiv thaiv kev sib tsoo kom muaj kev tiv thaiv zoo. Raws li lub tshuab ua haujlwm siab heev, thaum siv daim ntawv lossis tus cwj mem, nws yuav cia li xa cov lus ceeb toom kom txo qis kev puas tsuaj ntawm lub tshuab. Qhov tseem ceeb tshaj plaws yog tias nws tuaj yeem muab cov txiaj ntsig luam ntawv nrog cov xim hloov pauv siab, cov qauv qhia meej thiab du nto, yog li ua rau koj cov khoom sib tw.
Yam khoom No. | Qauv No. | QTY | Chav tsev Nqe(FOB Ningbo) |
1 | FDR-130Z CI flexo tshuab luam ntawv | 1 | |
Daim ntawv ceeb toom: | |||
Yeem: | |||
Cov nqe lus them nqi |
1. Hiav txwv / Cua Freight nqi & Kev tuav pov hwm: yuav tsum tau cuam tshuam los ntawm tus neeg yuav khoom. |
2. Pob: txheem exporting pob. |
3.Lub sij hawm xa tuaj: 90 hnub ua haujlwm tom qab tau txais cov nyiaj them poob haujlwm. |
4. Kev Them Nyiaj: 100% TT: 30 feem pua ntawm cov nyiaj them poob haujlwm, qhov nyiaj tshuav 70 feem pua yuav tsum tau them ua ntej xa khoom. |
5. Warranty: Lub tshuab muaj 12 lub hlis warranty txij li hnub ntawm tus neeg yuav khoom tau txais lub tshuab. |
6. Kev Pabcuam Txawv Tebchaws: -- Yog tias xav tau kev teeb tsa ntawm qhov chaw, tus nqi ntawm kev pab & khoom noj thiab daim pib dav hlau, nyiaj hli USD 100 ib hnub rau cov kws tshaj lij yuav tsum tau them los ntawm tus neeg yuav khoom. Lub sijhawm ib txwm ntawm kev teeb tsa yog 7 hnub. |
7.Tus xa: Email: mary@feidamachine.cn |
8.Quotation tuam txhab: Zhejiang Feida Machinery Co., Ltd |
Main Parameter
| Cov khoom | piav |
Qhov siab tshaj ntawm daim ntawv | 1300 hli |
Qhov siab tshaj plaws luam ntawv dav | 1280 hli |
Kev luam ntawv rov ua dua | 500-1200 hli |
Qhov siab tshaj plaws unwinding dia | 1500 hli |
Qhov siab tshaj plaws rewinding dia | 1500 hli |
Unwinding hom | Cua ncej |
Rewinding hom | Ntog nro |
Gear format | 3.175mm rau ib tus hniav |
Qhov ceev | 150-200m/min |
Lub thickness ntawm phaj | 1.7mm ib |
Lub thickness ntawm daim kab xev | 0.38 hli |
Cov ntaub ntawv tsim nyog | Lub khob ntawv, lub thawv ntawv thiab lwm yam |
Cov xim ntawm lub tshuab | Grey thiab dawb |
Cov lus ua haujlwm | Suav |
Cua compression | 6KG, 0.6L/min ntshiab, qhuav, tsis muaj dej / roj AIR |
Yuav tsum tau voltage | 380 VAC ntxiv /-10 feem pua 3PH 50HZ |
4 lub tswv yim rau kev luam ntawv ntawm lub hnab woven
Thaum cov tshuab luam ntawv tuaj yeem ua ntau yam hloov me me rau lawv cov haujlwm kom tau txais cov txiaj ntsig zoo tshaj plaws ntawm cov hnab woven, muaj plaub kauj ruam yooj yim uas tuaj yeem txhim kho koj cov ntawv luam tawm.
1.Siv tus cwj mem dej
2.Xav txog lub tshuab luam ntawv tsis siv neeg
3.Ua kom muaj kev ua haujlwm siab kom qhuav
4.Tau thiab tswj koj cov khoom siv
