Kev piav qhia

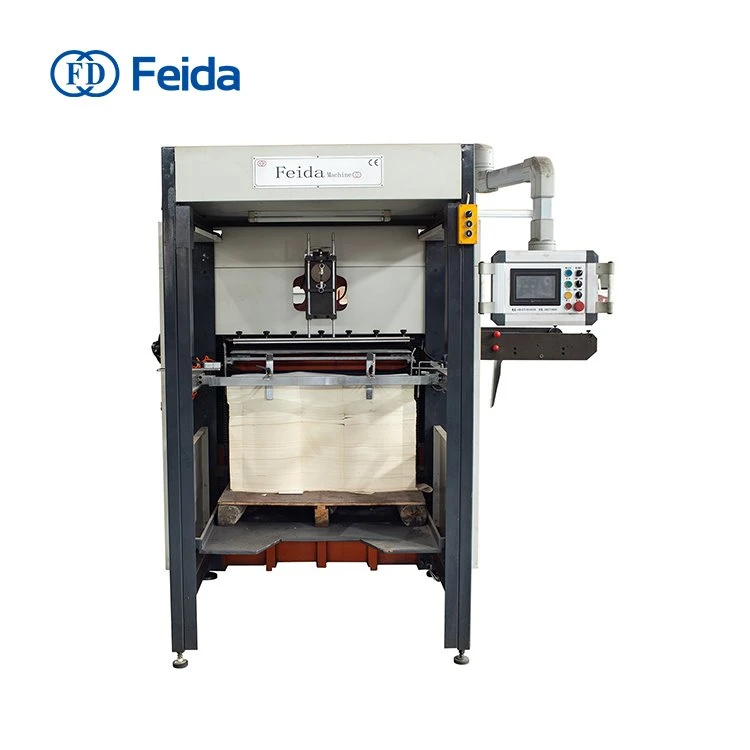

Qhov no PE coated ntawv txiav tshuab yog siv los txiav Pe-coated ntawv. Cov khoom no yog coated nrog PE thiab lwm yam ntaub ntawv tiv thaiv ib puag ncig ntawm daim ntawv, yog li nws muaj dej tsis kam, roj kuj thiab corrosion kuj. Nws feem ntau yog siv los ua cov khob ntawv thiab cov thoob ntim cov noodles. Yog tias koj xav tsim cov khoom lag luam khob zoo, koj yuav tsum txiav tawm cov ntawv tsim nyog ua ntej. Lub tshuab no yog siv los ua qhov haujlwm no. Nws ua haujlwm zoo, ua haujlwm tau zoo thiab nrawm, yog li nws tuaj yeem pab cov chaw tsim khoom txiav cov qauv zoo thiab sai.
Nta
1. PE tshoedntawvtxiav tshuabadopts pneumatic locking ntaus ntawv, uas tuaj yeem tiv thaiv cov khoom los ntawm kev poob ntawm lub tshuab.
2. Lub phaj tuag yog ua los ntawm 65Mn steel phaj tom qab kev kho cua sov, nrog rau siab hardness thiab flatness.
3. Lub taub hau cutter tuag thiab cutter taub hau clamp tuaj yeem raug tshem tawm, uas tuaj yeem txuag lub sijhawm ntawm kev hloov disc.
4. Thaum cov ntawv pub mis raug thaiv, lub tswb nrov yuav cia li nres lub tshuab.
5. Cov saw pneumatic nruas tuaj yeem tswj tau qhov nrawm nrawm los ntawm kev nro thiab tuaj yeem txhawb nqa tsawg kawg yog 1.5T.
6. Nws tuaj yeem thauj khoom thiab tshem tawm cov ntaub ntawv, thiab tag nrho cov txheej txheem tuag tsis tas yuav tsum tau siv daim ntawv tuav.
7. Lub tshuab no tsis yog tsuas yog tsim rau Pe txheej, tab sis kuj rau lwm yam khoom tshwj xeeb.
Technical Parameter
Qauv | FD{0}}X640 |
Max txiav cheeb tsam | 1170 x 600 mm |
Txiav precision | ± 0.15 hli |
Daim ntawv hnyav | 120-600g/㎡ |
Muaj peev xwm ntau lawm | 160-200times/min |
Cua siab xav tau | 0.5Mpa |
Cua siab noj | 0.25m³/min |
Max txiav siab | 300T |
Qhov hnyav | 9T |
Max roller txoj kab uas hla | 1600 hli |
Tag nrho lub zog | 12 kWm |
Dimension mm | 4500x2800x2000 |
Ib lub tsho vs ob lub tsho
1. Ib daim ntawv PE coated yog kraft ntawv coated nrog polyethylene ntawm ib sab. Cov hnab ntim khoom noj feem ntau tsuas yog coated nrog polyethylene rau sab hauv, vim tias cov ntawv luam ntawv zoo heev tsis tuaj yeem tau txais ntawm qhov chaw coated.
2. Ob txheej txheej PE coated ntawv yog ib hom ntawv qhwv nrog txheej sab hauv thiab sab nraud. Cov txheej txheej sab hauv yog los tiv thaiv dej seepage, thiab txheej txheej yog tsuas yog tiv thaiv kom tsis txhob ya raws hauv huab cua. Daim ntawv ob txheej txheej no feem ntau yog siv los ua cov ntim khoom pov tseg, xws li khob ntawv, thawv, ntawv tais, thiab lwm yam.
Cim npe nrov: pe coated ntawv txiav tshuab
