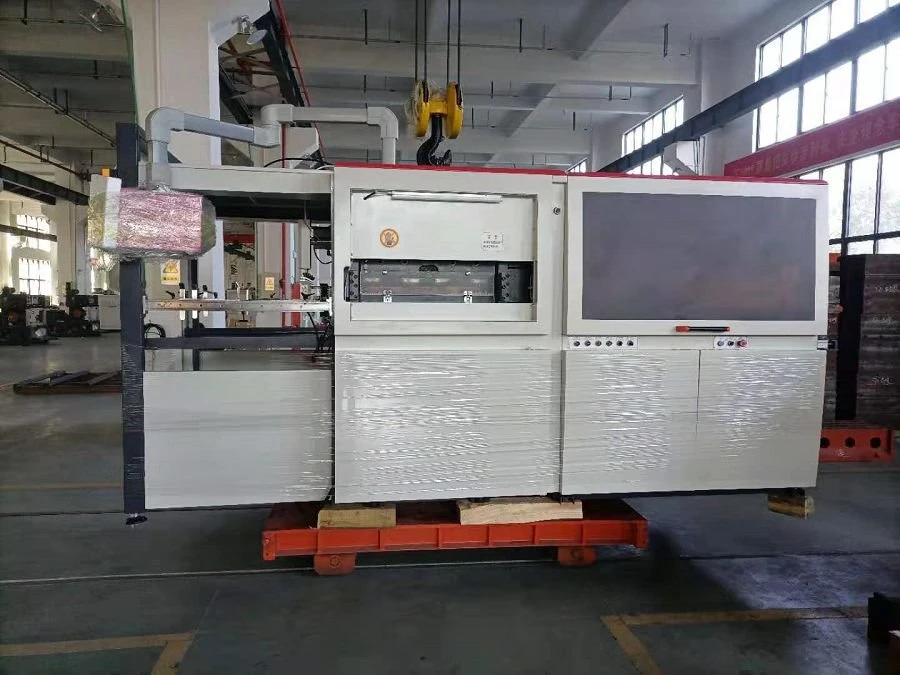

Paper Cup Die Cutting Machine
video
Paper Cup Die Cutting Machine

Paper Cup Die Cutting Machine

Paper cup die cutting machine adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic cluth, centralized oil lubrication, overload protection and distinctive gearing.
Xa kev nug
Hauj lwm lawm

Description

Paper cups are very common in our daily life. They have good water and oil resistance and are durable. The Paper Cup Die Cutting Machine is used to cut the raw material (PC cloth) of the paper cup into the appropriate size and shape for the subsequent production process of the paper cup. If the material is cut improperly, the shape of the paper cup may become strange. Our machine can realize accurate positioning and cutting according to the drawings in the computer, and the cut paper can be highly consistent in size and shape. Therefore, this machine is often the first choice of major manufacturers.


Features

Paper Cup Die Cutting Machine has fast production speed and high die-cutting precision, which can greatly improve production efficiency. At the same time, it can also remove waste materials automatically, reducing labor input. The tool is made of high-quality metal materials with good toughness, sharpness, and wear resistance, so its service life is very long. Digital control and drive technology have greatly improved its automation, and you can directly process various operations through the computer, which can reduce the errors that may occur in manual operations. High security makes it sure to be your good helper.


Remarks
1) Price Term: FOB Ningbo Port, China.
2)Payment term: TT (30% deposit, the balance70% before delivery)
3) Delivery time: 90working days after receiving the deposit
4) After sale service:
1.Spare parts guarantee for one year from the date of installation.
2.Send the technician for installation & training. Buyer bears the cost (round tickets,accommodation, and allowance of 100USD per day).
5)Certificate :CE ,ISO


Technical Specification

Model

FD970x640 Die Cutting Stripping Machine

Max Cutting Area

940mmx600mm

Cutting Precision

0.15mm

Paper Gram Weight

120-600g/㎡

Production Capacity

100-120 times/min(connection with stripping machine)
110-180times/min(without stripping machine)

Air Pressure Requirement

0.5Mpa

Air Pressure Consumption

0.25m³/min

Max Cutting Pressure

160 T

Max Roller Diameter

1600mm

Total Power

20KW

Stripping Precision

99%

Height of stacking

18-25mm

Suitable Paper Width

Max 1040mm. Min 600mm

Total Weight

8.0T

Dimension

8000x2300x1900mm

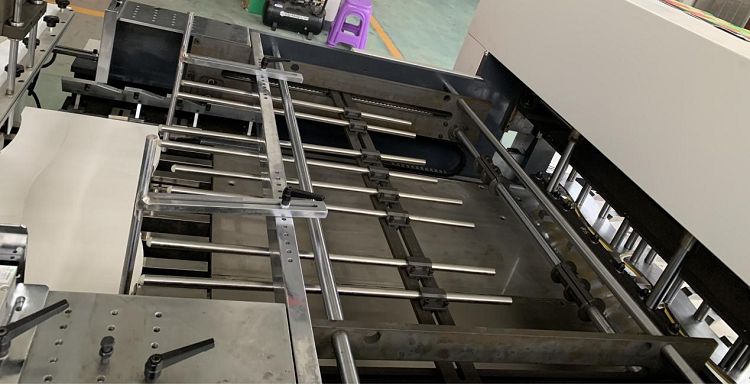

36(001)

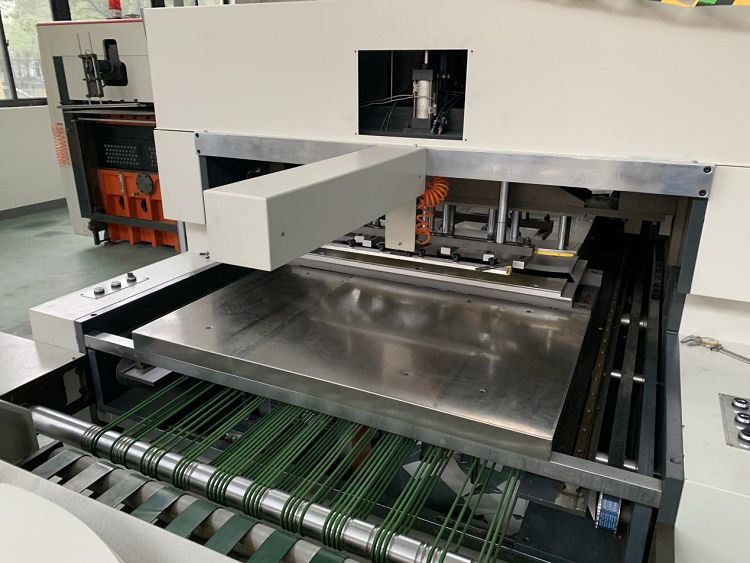

37(001)

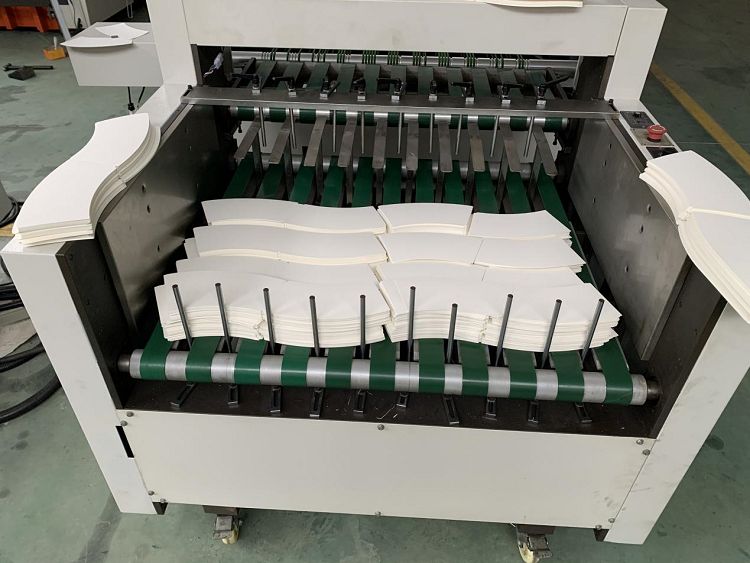

38(001)
