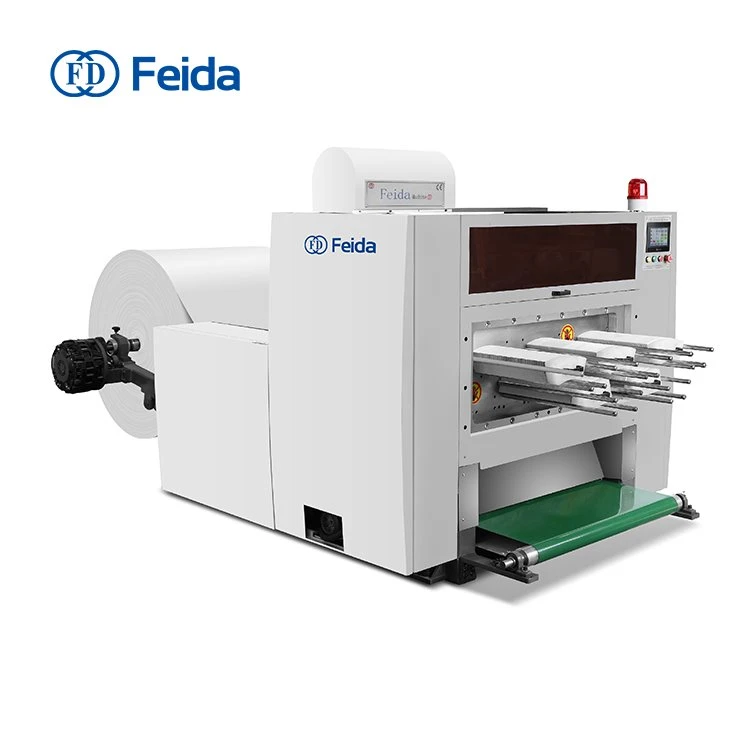

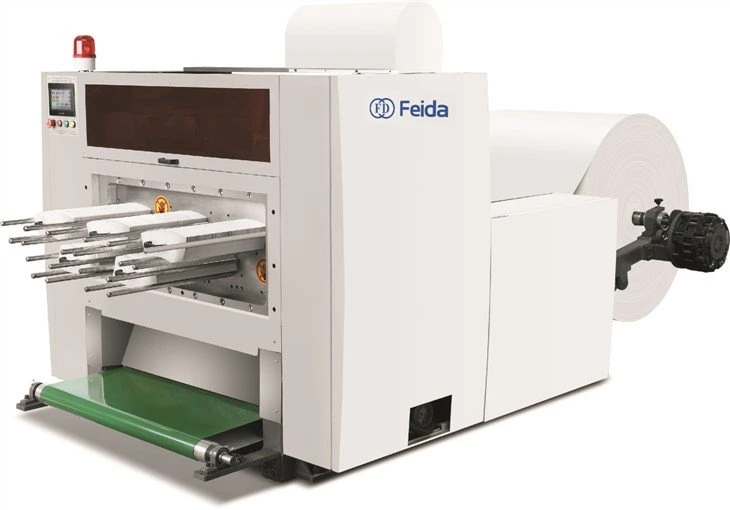

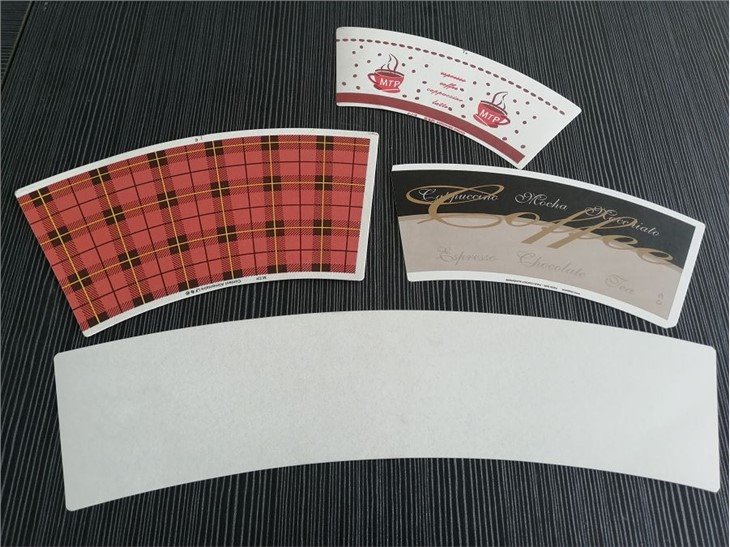

Lub tshuab yob tuag xuas nrig ntaus yog qhov tsim nyog rau kev tsim khoom loj vim tias nws qhov kev ua tau zoo tuaj yeem ncav cuag 400 zaug / teev. Nws yog qhov tsim nyog rau kev ua ntau yam khoom siv, xws li cov ntawv khob, cardboard, thiab lwm yam. Txhawm rau kom tsis txhob muaj qhov yuam kev ntawm phau ntawv, peb tau nruab nrog lub khoos phis tawj siab tshaj plaws, uas ua rau tag nrho cov txheej txheem ua tau zoo dua thiab qis dua qhov yuam kev. Rau ntau lub chaw tsim khoom nrog cov nqi peev tsawg, lub tshuab no yog ib qho kev daws teeb meem zoo los txhim kho cov nqi hluav taws xob thiab txo cov nqi, vim nws tsis tsuas yog siv hluav taws xob tsawg xwb tab sis kuj tsis tsim cov khoom pov tseg ntau. Tag nrho cov txheej txheem ua haujlwm yog yooj yim heev, yog li koj tsis tas yuav ntiav ntau tus neeg ua haujlwm.
Nta

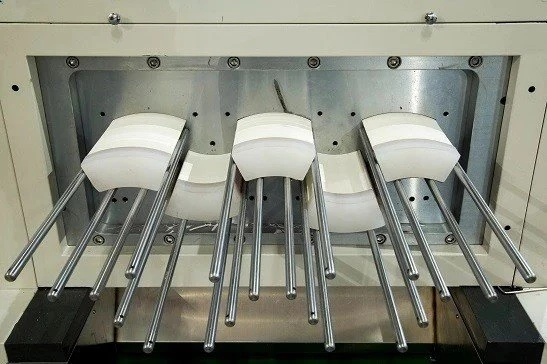

Lub tshuab yob tuag xuas nrig ntaus tshuab muaj cov yam ntxwv ntawm kev tsim khoom sai, raug xuas nrig ntaus, pub noj thiab stripping, thiab yog tsim rau 150-350gsm tuab ntawv. Nws yog tsav los ntawm 7.5KW hloov pauv zaus lub cev muaj zog nrog lub zog txaus thiab tuaj yeem ua haujlwm tsis tu ncua. Lub tshuab tag nrho yog tsim thiab tsim nrog cov thev naus laus zis thoob ntiaj teb, thiab nws tuaj yeem txuag hluav taws xob thiab paub txog kev tswj tsis tau nrawm. Tshwj xeeb tshaj yog thaum nws tau sib phim nrog cov flywheel loj, nws lub zog txiav yog qhov muaj zog dua thiab ruaj khov, thiab lub zog siv kuj tuaj yeem txo qis ntxiv. Lub tshuab no tuaj yeem siv dav hauv kev luam ntawv, ntim thiab ntawv cov khoom lag luam.
Lus hais
1) Nqe Sijhawm: Ningbo chaw nres nkoj, Suav teb
2) Lub sij hawm them nyiaj: TT (30 feem pua ntawm tso nyiaj, qhov nyiaj tshuav 70 feem pua ua ntej xa khoom)
3) Lub sij hawm xa tuaj: 45 hnub ua haujlwm tom qab tau txais qhov tso nyiaj (tom qab kev paub tseeb ntawm hom)
4) Kev pab cuam tom qab muag:
1. Cov khoom seem lav rau ib xyoos txij li hnub teeb tsa.
2. Xa cov kws tshaj lij rau kev teeb tsa & kev cob qhia. Tus neeg yuav dais tus nqi (daim pib ncig, chaw nyob, thiab nyiaj pub dawb ntawm 100USD ib hnub)
Technical Specification
| Qauv | FDC{0}}x450 | FDC{0}}x450 | FDC{0}}x450 |
Max txiav dav | 850 | 920 | 1000 |
Txiav precision | ± 0.15 hli | ± 0.15 hli | ± 0.15 hli |
Daim ntawv hnyav | 150-400g/㎡ | 150-400g/㎡ | 150-350g/㎡ |
Muaj peev xwm ntau lawm | 330-350times/min | 330-350times/min | 280-320times/min |
Cua siab xav tau | 0.5Mpa | 0.5Mpa | 0.5Mpa |
Cua siab noj | 0.25m³/min | 0.25m³/min | 0.25m³/min |
Tag nrho lub zog | 10 kwv | 10 kwv | 10 kwv |
Qhov hnyav | 3.5T | 4.0T | 4.0T |
Max roller txoj kab uas hla | 1500 hli | 1500 hli | 1500 hli |
Dimension | 3500x1700x1900mm | 3500x1800x1900 | 3500x1900x1900 |

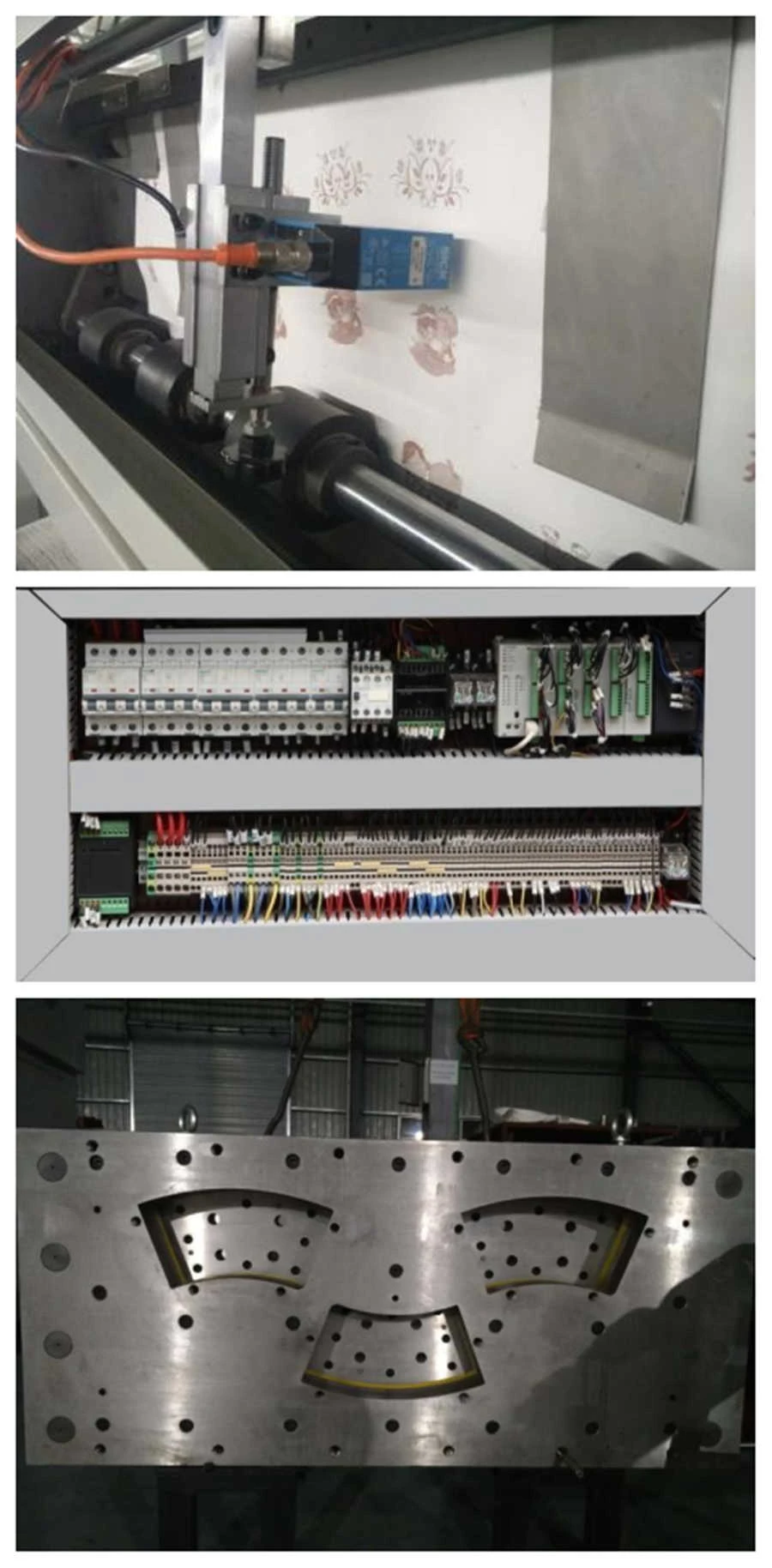

Hluav taws xob Configuration
| PLC | Taiwan Delta |
Servo Tsav | Taiwan Delta |
Kov npo | Flexem SHANGHAI |
Zaus converter | Schneider |
Hloov | Eaton |
Main lub cev muaj zog | jiagsu |
Pub lub cev muaj zog | jiagsu |
Contactor | Eaton |
Relay | Weidmuler |
Khawm | Eaton |
Pwm | Austria |
Xim sensor | Mob |
Qhov sib txawv ntawm cov xuas nrig ntaus thiab drilling tshuab
1. Drilling yog cov txheej txheem ntawm drilling ntawm cov khoom ua tiav nrog lub laum me ntsis, thaum xuas nrig ntaus yog cov txheej txheem ntawm nias lub laum me ntsis downward rau hauv lub qhov nrog lub ntiajteb txawj nqus.
2. Lub tshuab xuas nrig ntaus yog tsim rau kev ua cov ntaub ntawv mos, vim hais tias lub qhov drilled los ntawm lub tshuab drilling yuav muaj burrs thiab unevenness.
3. Lub laum yog tsim nyog rau kev ua cov ntaub ntawv nyuaj, vim hais tias lub pulse ntawm cov punch nyhav ua rau tawg ntawm cov khoom ua tiav.
Cim npe nrov: yob tuag punching tshuab
