Kev piav qhia

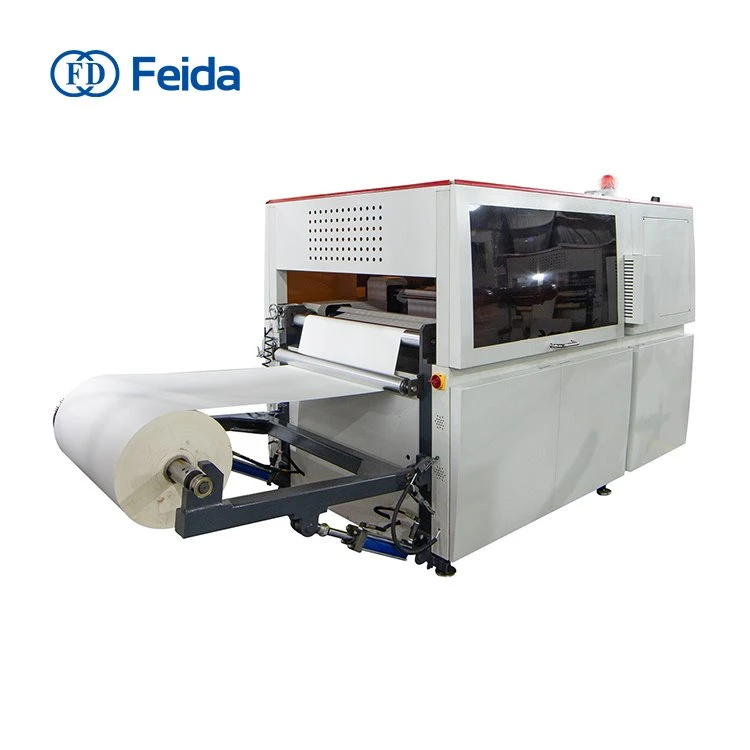

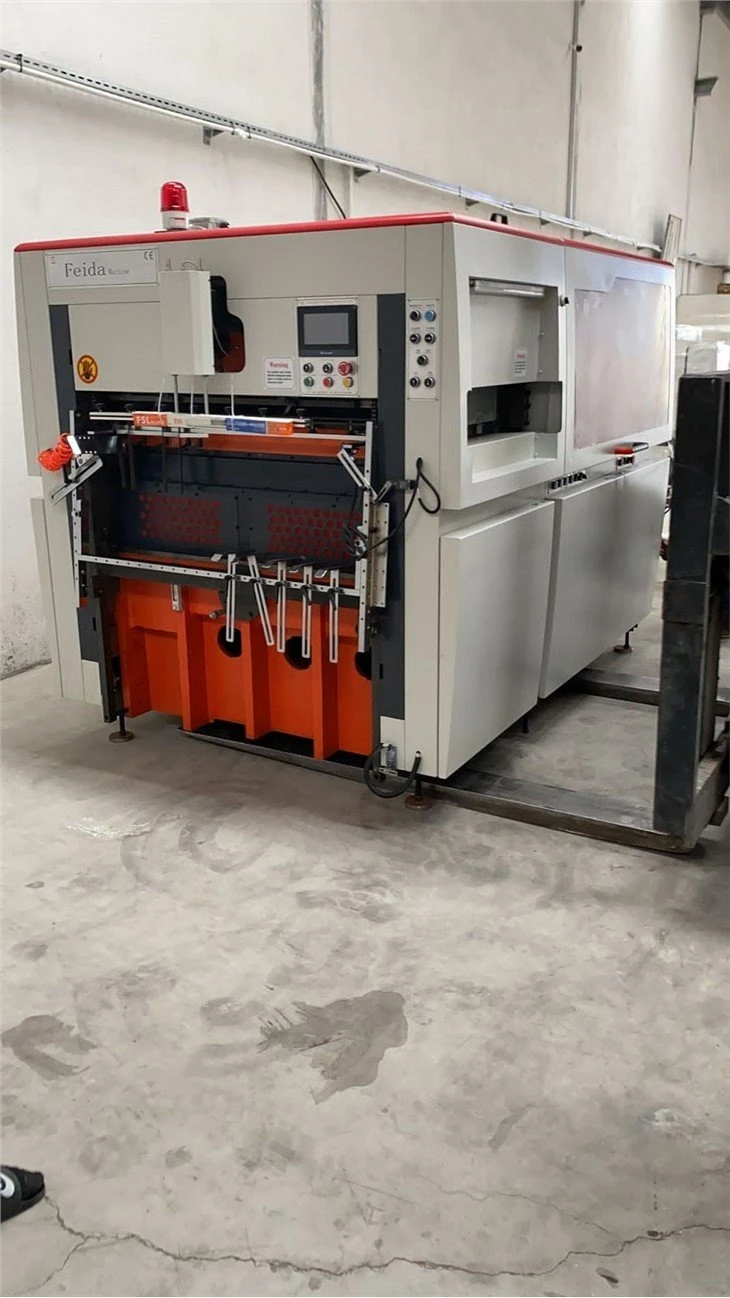

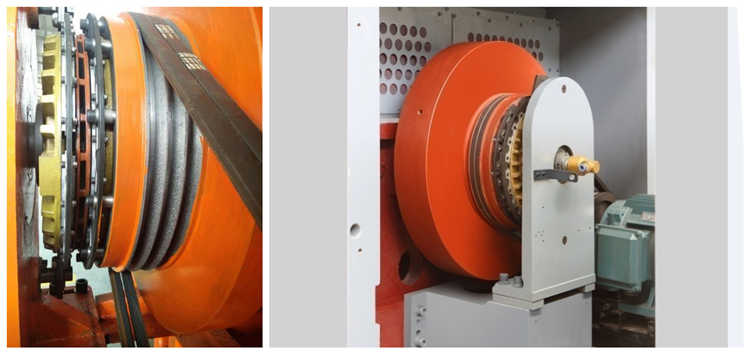

Lub thawv ntawv no tuag txiav tshuab yog tsav los ntawm 7.5KW hloov pauv zaus lub cev muaj zog, yog li nws lub zog txaus. Nws tseem tuaj yeem paub txog kev tswj tsis tau nrawm, uas tsis tsuas yog ua rau lub tshuab ua haujlwm ruaj khov, tab sis kuj txo qis kev siv zog. Lub pneumatic clutch nres ntawm lub tshuab tuaj yeem tswj lub zog tsav tsheb los ntawm kev kho cov cua siab kom ua tiav cov suab nrov qis thiab kev ua haujlwm siab braking. Nyob rau hauv cov ntaub ntawv ntawm overload, lub tshuab yuav cia li nres, yog li cov lus teb ntawm lub tshuab yog heev rhiab heev thiab ceev.
Nta
Daim ntawv lub thawv tuag txiav tshuab yog tsuas yog siv hauv kev lag luam ntim khoom. Nws tuaj yeem paub qhov tuag-txiav ntawm ntau lub thawv thiab daim npav tos txais, thiab yog ib qho khoom siv tseem ceeb hauv cov txheej txheem ntim khoom. Lub tshuab no muaj cov qauv yooj yim thiab yooj yim heev rau kev saib xyuas. Nws yog tswj los ntawm lub computer, yog li nws yooj yim rau kev khiav lag luam thiab xav tau cov neeg ua haujlwm tsawg. Txhua qhov tseem ceeb ntawm lub tshuab yog ua los ntawm cov hlau cam khwb cia zoo, uas yuav tsis deform, yog li kev ua haujlwm ruaj khov dua.
Cov ntaub ntawv tuam txhab
Zhejiang Feida Machinery Co., Ltd (Feida) pib los ntawm 2010 thiab npog 20, 000m2 nrog lub peev xwm ntawm kev tsim ntau tshaj 300 tshuab txhua xyoo raws li ib tug enterprise uas tsom rau kev tshawb fawb thiab kev loj hlob, tsim, muag, thiab tom qab- Kev muag khoom ntawm Tsis Siv Neeg Roll Die Txiav Tshuab, Tsis Siv Neeg Roll Die Punching Tshuab, Carton Erecting Tshuab, Ntawv Box Forming Tshuab, Ntawv Cake Box Tshuab, Flexo Printing Tshuab, Cartoning Tshuab thiab lwm yam.
Nrog lub hom phiaj "los ua tus neeg xa khoom zoo" thiab lub hom phiaj "kom txaus siab rau cov neeg siv khoom thiab muab cov kev pabcuam zoo tshaj plaws tom qab muag", Feida xav ua cov khoom lag luam sab saum toj kom tau raws li cov kev xav tau ntawm cov neeg siv khoom mus rau qib zoo. Txij li thaum nws tsim, Feida tau hloov mus rau xyoo tas los thiab tau nce nws tus kheej mus rau hauv txoj haujlwm ua haujlwm nrog cov tuam txhab ntim khoom rau KFC, Mcdonald's, Subway, Starbucks.
Technical Parameter
Qauv | FD-970X550 |
Max txiav cheeb tsam | 940mm x 510 hli |
Txiav precision | ± 0.15 hli |
Daim ntawv hnyav | 120-400g/㎡ |
Muaj peev xwm ntau lawm | 160-200times/min |
Cua siab xav tau | 0.5Mpa |
Cua siab noj | 0.25m³/min |
Max txiav siab | 180T |
Qhov hnyav | 6T |
Max roller txoj kab uas hla | 1600 hli |
Tag nrho lub zog | 12 kWm |
Dimension mm | 4500x2200x1800 |
Stepper lub cev muaj zog | Schneider |
Siab kho lub cev muaj zog | Taiwan |
Servo tsav tsheb | Schneider |
Xim Sensor | Mob |
PLC | Schneider |
Zaus converter | Schneider |
Tag nrho lwm yam khoom siv hluav taws xob | Schneider |
Photoelectric hloov | Leuze |
Main lub tog raj kheej | AirTAC |
Solenoid valve thiab lwm yam | AirTAC |
Pneumatic clutch | Tuam Tshoj |
Main bearings | Lub teb chaws Yelemees |
Lub tshuab tuag-txiav yog siv tau rau cov khoom ntim khoom. Peb tuaj yeem muab ntau cov tshuab sib txuam raws li cov neeg siv khoom xav tau.
Tswv yim
1. Seb lub indentation tuag yog tsim nyog yuav muaj kev cuam tshuam zoo rau cov nyhuv ntawm cov khoom kawg. Thaum xaiv qhov indentation tuag, koj yuav tsum tau xyuam xim rau nws qhov tseeb qhov tseeb, qhov nyuaj ntawm daim ntawv thaub qab thiab adhesion ceev. Tsis tas li ntawd, qhov loj thiab qhov tshwj xeeb ntawm qhov kev xaiv wrinkling tuag yuav tsum sib txawv raws li daim ntawv tuab.
2. Ua ntej ib pawg ntawm kev ua haujlwm tshiab tuag-txiav, tus neeg teb xov tooj yuav tsum tau ntxuav lub phaj hauv qab ntawm lub thawv ntawv lub thawv tuag ua ntej, vim tias qhov chaw ntawm lub phaj hauv qab tej zaum yuav muaj cov nplaum nplaum thiab lwm cov khib nyiab los ntawm cov txheej txheem dhau los. Tsis tas li ntawd, thaum tus neeg teb xov tooj kho qhov kev txiav txim siab tuag, nws yuav tsum tau ua ib kauj ruam los ntawm qhov me mus rau qhov loj. Yog hais tias qhov tuag-txiav siab yog nce nyob rau hauv ib lub sij hawm, lub tuag-txiav riam thiab lub hauv paus phaj yuav puas. Hauv qhov xwm txheej hnyav, lub tshuab txiav tuag yuav raug puas tsuaj.
