Taw qhia

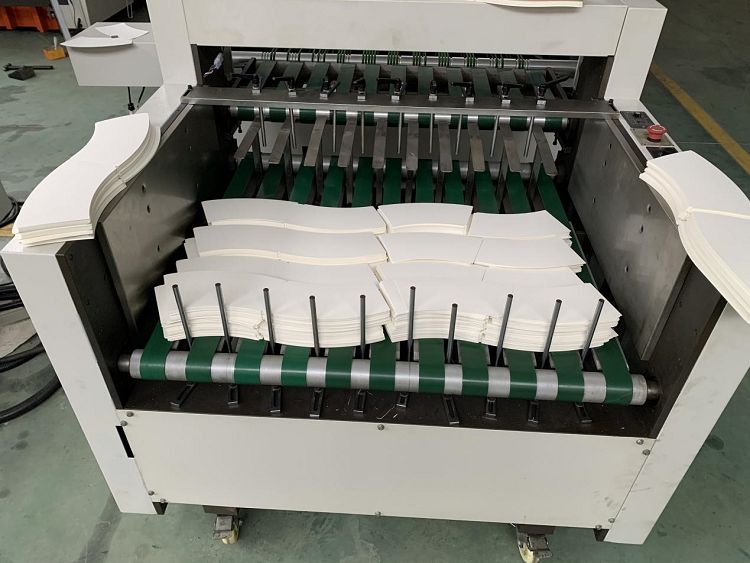

Rau kev tsim cov khob ntawv pov tseg, cov khoom siv raw yog qhov tseem ceeb heev. Peb Daim Ntawv Khob Ntoo Txiav Tshuab tuaj yeem txiav cov ntaub ntawv raw rau hauv cov duab sib txawv thiab qhov ntau thiab tsawg raws li qhov xav tau sib txawv. Tom qab txiav, nws yuav cia li tso cov pov tseg thiab sau cov khoom tiav hauv kev txiav txim. Xws li cov txheej txheem tsis siv neeg ntau lawm tuaj yeem txo cov khoom pov tseg ntawm kev ua haujlwm thiab txhim kho kev tsim khoom. Tom qab ntawd, txoj siv tawv yuav hloov cov khoom mus rau qhov chaw sau thiab txiav nws. Tsis tas li ntawd, peb cov khoom siv hluav taws xob siv cov khoom lag luam paub zoo thiab ua tau raws li EU CE tus qauv, uas yog qhov kev xaiv zoo tshaj plaws rau cov kws tshaj lij.
Nta
1. Kev txiav txim siab ntawm Daim Ntawv Khob Ntoo Ntoo Txiav Tshuab tuaj yeem ncav cuag 0.15 hli, thiab nws tuaj yeem raug tsim raws li daim duab kos, uas ua tau zoo heev.
2. Kev tsim tsim nyog ntawm lub tshuab txiav tuag tuaj yeem ua rau cov cuab yeej ua haujlwm tau zoo thiab txo qhov kev txiav txim siab tuag thiab tawg.
3. Servo motors, programmable controllers, zaus converters, thiab lwm yam khoom yuav ua rau cov txheej txheem ntau lawm ntawm cov khoom tswj tau thiab hloov tau.
4. Tus neeg teb xov tooj tuaj yeem tswj cov txheej txheem ntau lawm ntawm lub khoos phis tawj, yog li qhov nyuaj ntawm lub tshuab ua haujlwm tau txo qis heev.
Lus ceeb toom:
1) Nqe Sijhawm: FOB Ningbo Chaw nres nkoj, Suav.
2) Lub sijhawm them nyiaj: TT (30 feem pua ntawm tso nyiaj, qhov nyiaj tshuav 70 feem pua ua ntej xa khoom)
3) Lub sij hawm xa tuaj: 90 hnub ua haujlwm tom qab tau txais qhov tso nyiaj
4) Kev pab cuam tom qab muag:
1.Spare qhov chaw lav rau ib xyoos txij li hnub ntawm kev teeb tsa.
2.Xa tus kws tshaj lij rau kev teeb tsa & kev cob qhia. Tus neeg yuav dais tus nqi (ib daim pib, chaw nyob, thiab nyiaj pub dawb ntawm 100USD ib hnub).
5) Daim ntawv pov thawj: CE.ISO
Technical Specification

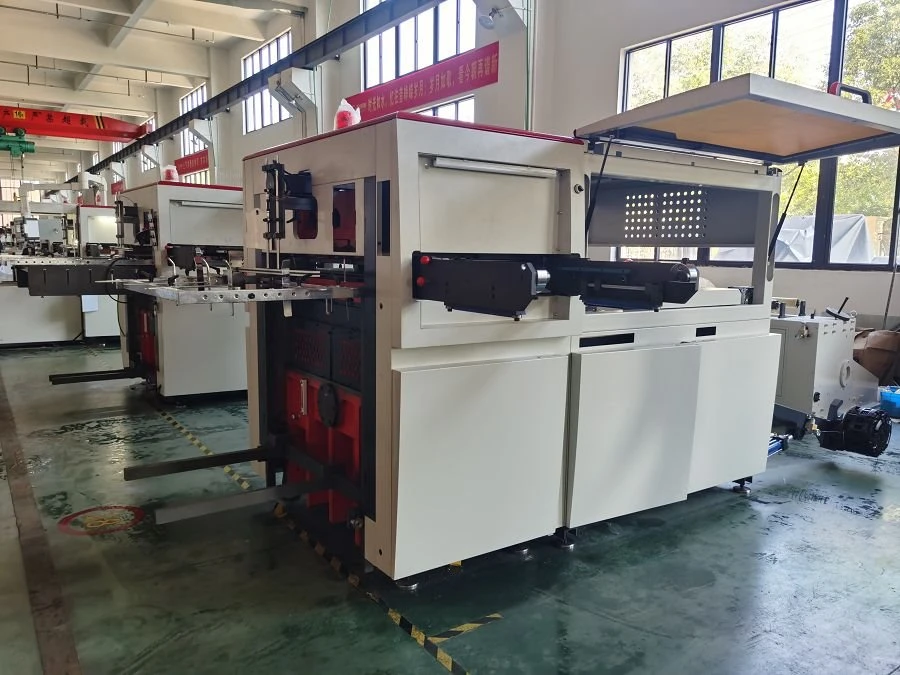

| Qauv | FD970x640 Tuag Txiav Stripping Tshuab |
Max txiav cheeb tsam | 940 x 600 mm |
Txiav Precision | 0.15 hli |
Daim ntawv Gram hnyav | 120-600g/㎡ |
Muaj Peev Xwm Ntau Lawm | 100-120 zaug/min (kev twb kev txuas nrog stripping tshuab) |
Kev xav tau cua txias | 0.5Mpa |
Kev siv cua siab | 0.25m³/min |
Max Txiav Siab | 160 T |
Max Roller Diameter | 1600 hli |
Tag Nrho Lub Zog | 20 KW |
Stripping Precision | 99 feem pua |
Qhov siab ntawm stacking | 18-25 hli |
Haum Daim Ntawv Dav | Max 1040 hli. Min 600 mm |
Qhov hnyav tag nrho | 8.0T |
Dimension | 8000x2300x1900mm |
Hluav taws xob Configuration
Electric Configuration – Stripping Section | |
Kov npo | Weinview |
Servo Tsav | Schneider (GERMANY) |
Servo Tsav | Schneider (GERMANY) |
Hloov | Delta (Taiwan) |
Stepper Tsav | Schneider (Lub teb chaws Yelemees) |
Siab kho lub cev muaj zog | Taiwan |
Servo tsav tsheb | Schneider (Lub teb chaws Yelemees) |
Xim Sensor | Mob (Lub teb chaws Yelemees) |
PLC | Delta (Taiwan) |
Zaus converter | Schneider (Lub teb chaws Yelemees) |
Tag nrho lwm yam khoom siv hluav taws xob | Siemens |
Photoelectric hloov | Leuze (Lub teb chaws Yelemees) |
Main lub tog raj kheej | AirTAC (Taiwan) |
Solenoid valve thiab lwm yam | AirTAC (Taiwan) |
Pneumatic clutch | Tuam Tshoj |
Main bearings | Lub teb chaws Yelemees |
Siv thiab kho
Ua tib zoo saib xyuas lub lubrication thiab kev tiv thaiv ntawm lub tshuab txiav tuag. Yog tias cov khoom siv tuag-txiav puas lawm, nws yuav tsum tau hloov. Kev siv lub zog sib npaug yuav pab txo qis kev cuam tshuam thiab txuas ntxiv nws lub neej kev pabcuam. Ua tib zoo sau cov sijhawm siv ntawm Daim Ntawv Khob Ntoo Ntoo Txiav Tshuab thiab kev siv thiab hnub tim ntawm txhua qhov khoom, txhawm rau pab txhawb kev xaiv cov khoom tsim nyog hloov thiab sijhawm kho.
