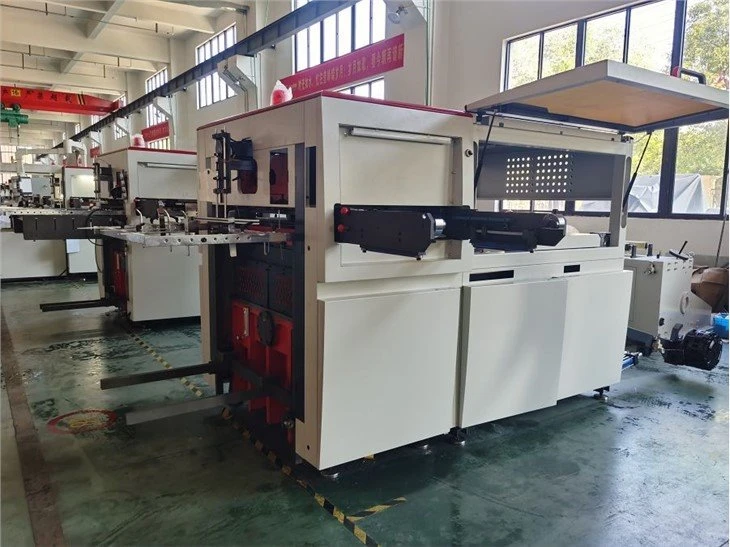

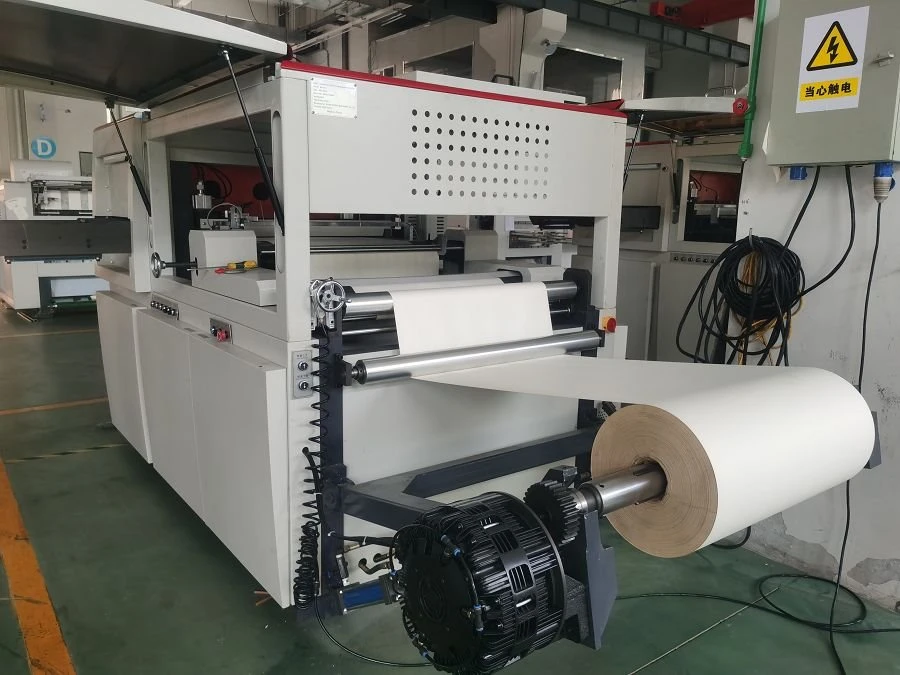

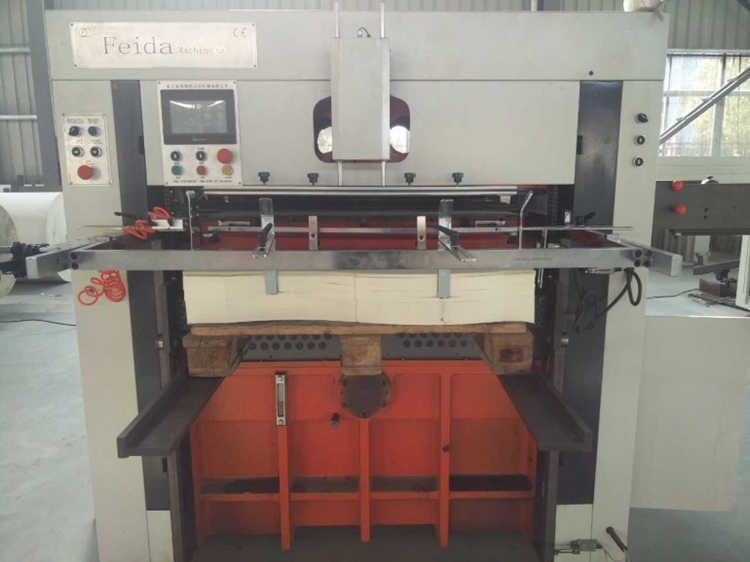

Lub thawv txiav tshuab tuaj yeem hloov pauv cov txheej txheem kev siv phau ntawv txiav thiab muab qhov tseeb dua thiab tus nqi zog qis dua. Hauv kev siv tswv yim, nws tuaj yeem tsis tsuas yog muab cov txheej txheem txiav ceev, zoo thiab nyab xeeb, tab sis kuj txo qhov kev puas tsuaj ntawm cov khoom mus rau qhov tsawg kawg nkaus. Lub tshuab no tuaj yeem siv los txiav ntau lub thawv zoo li tus qauv, xws li lub thawv hamburger, cov thawv qos yaj ywm chips, thiab lwm yam. Lub fuselage yog ua los ntawm cov khoom siv hlau zoo, yog li nws muaj kev tiv thaiv corrosion zoo, robustness thiab cuam tshuam rau lub sijhawm ntev. siv. Yog tias koj xav yuav peb lub tshuab txiav, thov koj xav tiv tauj peb, thiab peb yuav muab cov nqi tshwj xeeb rau koj.
Nta
Lub thawv txiav tshuab no yog tsim los nrog cov thev naus laus zis thoob ntiaj teb, nrog kev ruaj ntseg siab, kev nyab xeeb kev ua haujlwm siab thiab siab precision ntawm cov khoom tiav. Nws yog nruab nrog tib neeg-tshuab tswj interface thiab servo positioning system, yog li nws cov neeg ua haujlwm raug zoo heev, thiab nws tuaj yeem ua kom muaj qhov sib xws ntawm daim ntawv loj yam tsis muaj qhov sib txawv thiab cov duab. Ua tsaug rau nws cov kev tiv thaiv overload thiab tsis siv neeg lubrication muaj nuj nqi, kev nyab xeeb siab thiab tsis ua haujlwm ntawm tag nrho lub tshuab tuaj yeem lav tau zoo. Tam sim no, lub tshuab no tau siv dav hauv kev luam ntawv, ntim khoom thiab cov khoom lag luam ntawv, tshwj xeeb tshaj yog rau cov chaw tsim khoom nrog cov nqi qis.
Qauv | 970x640 ua |
Max txiav cheeb tsam | 940 x 600 mm |
Txiav precision | ± 0.15 hli |
Daim ntawv hnyav | 120-400g/㎡ |
Muaj peev xwm ntau lawm | 160-200times/min |
Cua siab xav tau | 0.5Mpa |
Cua siab noj | 0.25m³/min |
Max txiav siab | 180T |
Qhov hnyav | 6T |
Max roller txoj kab uas hla | 1600 hli |
Tag nrho lub zog | 12 kWm |
Dimension mm | 4500x2200x1800 |
Cim npe nrov: lub thawv txiav tshuab
