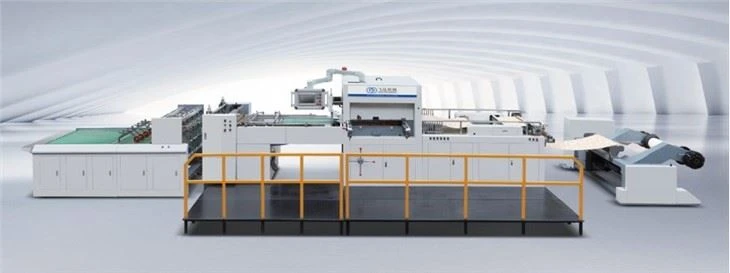

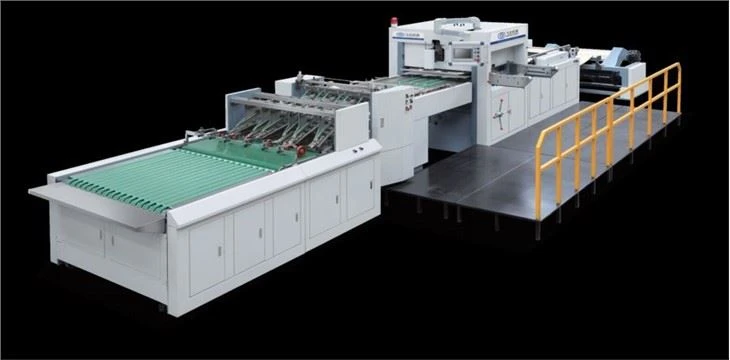

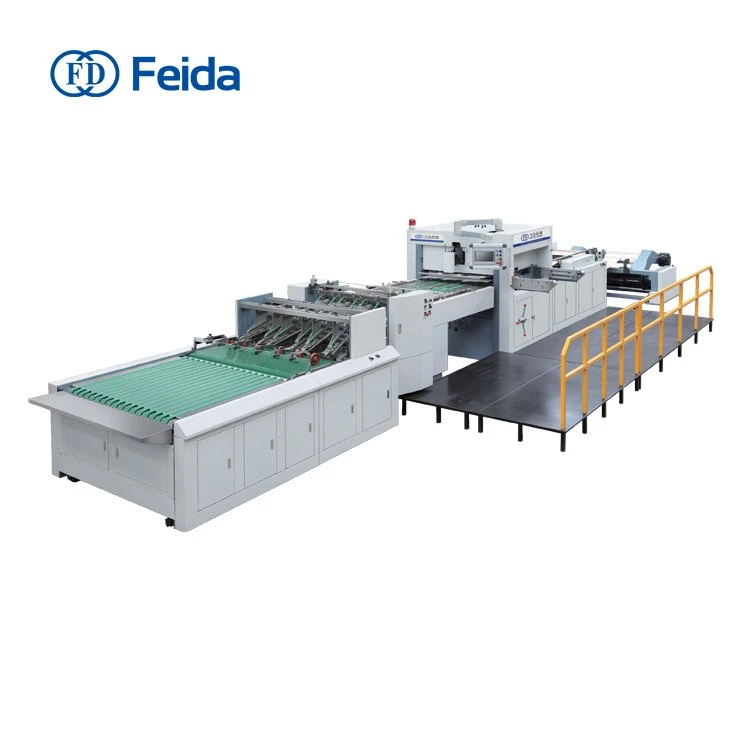

Qhov no yob tuag txiav nrog stripping tshuab muaj cov yam ntxwv ntawm tus nqi tsim nyog thiab siv tau yooj yim, thiab nws tuaj yeem ua tau raws li qhov xav tau ntawm cov khoom sib txawv. Hauv kev siv tswv yim, nws tuaj yeem pom qhov zoo dua li cov tshuab txiav cov tshuab zoo tib yam. Lub tshuab no yog nruab nrog lub tshuab stripping, thiab nws siv sandwich steel phaj ua lub phaj tuag, nrog rau cov siab sib xws. Yog li ntawd, nws tuaj yeem ua tiav kev txiav tuag thiab tshem tawm cov khoom seem ntawm ib zaug kom txo tau qhov deformation tshwm sim ntawm lub thawv. Qhov tseem ceeb tshaj plaws, peb muaj cov kws tshaj lij kev muag khoom los pab cov neeg siv khoom hauv cov khoom lag luam loj, tsim cov khoom seem thiab cov khoom siv suav kom pom zoo cov cuab yeej tsim nyog tshaj plaws rau cov neeg siv khoom.
Nta:
Qhov no yob tuag txiav nrog stripping tshuab yog nruab nrog cov khoom los ntawm cov neeg muag khoom sab saum toj, yog li nws qhov kev ua tau zoo ruaj khov thiab qhov tsis ua haujlwm tsawg heev. Txhawm rau txo qhov nyuaj ntawm cov txheej txheem ua haujlwm thiab pab cov qhua txo cov nqi zog, peb tau nruab nws nrog kev sib koom ua ke ntawm tib neeg-tshuab ua haujlwm interface, thiab tsuas yog yuav tsum muaj 1-2 cov neeg ua haujlwm rau tag nrho cov txheej txheem. Ua tsaug rau thawj-chav tswj qhov system, lub tshuab no tuaj yeem ua tiav cov txheej txheem kev ua haujlwm siab thiab ua haujlwm siab. Lub cev hlau yog hnav-tiv taus thiab yooj yim los ntxuav. Ntau yam kev tiv thaiv kev ua haujlwm tuaj yeem txhim kho kev nyab xeeb thiab txo cov khoom tsis tsim nyog.
Lus ceeb toom:
Lub sijhawm siv tau:
1) Nqe Sijhawm: FOB ningbo chaw nres nkoj, Suav teb
2) Lub sijhawm them nyiaj: TT (30 feem pua ntawm tso nyiaj, qhov nyiaj tshuav 70 feem pua ua ntej xa khoom).
3) Lub sij hawm xa tuaj: 90 hnub ua haujlwm tom qab tau txais qhov tso nyiaj
4) Kev pab cuam tom qab muag:
1.Spare qhov chaw lav rau ib xyoos txij li hnub ntawm kev teeb tsa.
2.Xa tus kws tshaj lij rau kev teeb tsa & kev cob qhia. Tus neeg yuav dais tus nqi (ib daim pib, chaw nyob, thiab nyiaj pub dawb ntawm 100USD ib hnub).
5) Daim ntawv pov thawj: CE.ISO
Technical Specification
| Qauv | FD1100x780 |
Max txiav cheeb tsam | 1050mmx740mm |
Txiav Precision | ± 0.25 hli |
Daim ntawv Gram hnyav | 210-600g/㎡ |
Muaj Peev Xwm Ntau Lawm | 90-110 zaug/min |
Kev xav tau cua txias | 0.5Mpa |
Kev siv cua siab | 0.25m³/min |
Max Txiav Siab | 300T |
Max Roller Diameter | 1600 hli |
Tag Nrho Lub Zog | 30 KW |
Qhov hnyav tag nrho | 12T |
Dimension | 12500x4500x2000mm |
Hluav taws xob Configuration
Tuag txiav tshuab | |||
Tsis muaj. | MOTOR MODEL | Cov neeg tsim khoom | |
1 | Main Hloov | Delta Taiwan | |
2 | Servo Tsav | Schneider Lub teb chaws Yelemees | |
3 | Xim Sensor | Mob lub teb chaws Yelemees | |
4 | Kov npo | Flexem | |
5 | PLC | Schneider | |
6 | Traction Tsav | Taiwan Chengbang | |
7 | Hloov pauv zaus | Schneider Lub teb chaws Yelemees | |
8 | Mainframe ya log, Cua nres, Clutch | Tuam Tshoj | |
Stripping Parts | |||
MOTOR MODEL | Cov neeg tsim khoom | ||
Servo Tsav | Schneider Lub teb chaws Yelemees | ||
Zaus Tsav | Schneider Lub teb chaws Yelemees | ||
Txo lub cev muaj zog | Lichao plus Dingzu | ||
Zaus Converter | Schneider Lub teb chaws Yelemees | ||
PLC | Schneider | ||
Hloov | Eaton | ||
Stepper Tsav | Tuam Tshoj | ||
Cim npe nrov: yob tuag txiav nrog stripping tshuab
