Cov ntaub ntawv khoom

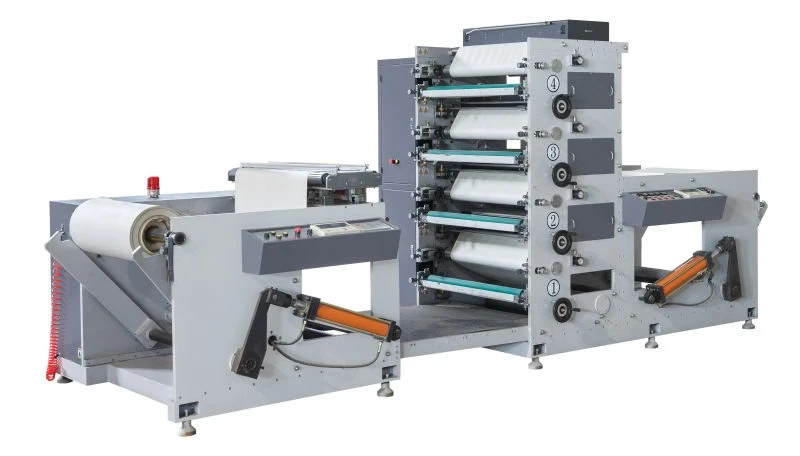

Mis Box Printing Tshuab yog tsim rau intaglio multicolor printing ntawm ntau yam yas zaj duab xis, ntawv thiab lwm yam ntaub ntawv yob. Tsis tas yuav tsum nres lub tshuab rau winding thiab unwinding. Lub tshuab tseem tuaj yeem tau txais cov ntaub ntawv txiav, xim ntse thiab thauj cov phaj tsis muaj shafts. Nws yog nruab nrog pneumatic scraper thiab zaus tswj kom ruaj khov nro thiab raug xim luam ntawv. Lub tshuab no muaj qhov zoo ntawm kev ua haujlwm siab, kev siv hluav taws xob tsawg, tsim nyog tsim thiab txhim khu kev qha. Raws li cov neeg siv khoom xav tau, peb tuaj yeem ntxiv rau pem hauv ntej thiab thim rov qab tshuab luam ntawv, kab rov tav tsis siv neeg xim sib txuam, cov khoom siv dej txias, thiab lwm yam.
Nta
1.Milk Box Printing Tshuab muaj ntau lawm efficiency thiab tsawg zog noj, yog li nws yog ib qho khoom txuag hluav taws xob thiab ib puag ncig-phooj ywg.
2.Nws yog nruab nrog cua txias ntaus ntawv thiab ob-lub tog raj kheej impression roller, uas muaj peev xwm paub txog huab cua sab saum toj shaftless phaj mounting.
3.Lub tshuab kuj tau nruab nrog lub tshuab ziab khaub ncaws thiab lub tshuab hluav taws xob sab nraud kom ua tiav cov txiaj ntsig luam ntawv zoo dua.
4.A ntau yam khoom siv ntse los txhim kho lub tshuab automation, yog li txuag cov nqi zog rau cov tuam txhab.
Specification
TSIS MUAJ. | Qauv | Kuv -950-4 |
1 | Max Unwinding Diameter | 1400 hli |
2 | Max Rewinding Diameter | 1400 hli |
3 | Luam Ntawv Circumference | 254--508 hli |
4 | Max Web dav | 9 50mm |
5 | Max Printing Dav | 9 30mm |
6 | Fais fab mov | 380V 3PH 50HZ |
7 | Luam Ntawv Ceev | 5-100m/min |
8 | Phaj thickness | 1.7mm ib |
9 | Daim kab xev thickness | 0.38 hli |
10 | Thickness ntawm daim ntawv | 40-400g |
11 | Printing precision | ± 0.12 hli |
12 | Qhov hnyav | Txog 5200kgs |
13 | Tshuab luam ntawv | 1/8 np |
14 | Qhuav | Infrared Tshuab ziab khaub ncaws nrog 6pcs teeb |
15 | Rewinding | Nto rewinding nrog cov menyuam loj |
16 | Qhov siab tshaj plaws ntawm cov cua sov tshuab ziab khaub ncaws | 90 degree |
17 | Main lub cev muaj zog | 7.5 kWm |
18 | Tag nrho lub zog | 37 kWm |
19 | Dimension | 5.2*1.85*3.1m |
Main Technical Parameters Configuration
Lub npe | tus neeg muag khoom |
Unwinding Tension | CHUYIN TECH |
Rewinding Tension Converter | Inovance |
Main lub cev muaj zog converter | Schneider |
Main Tsav | 7.5KW Shanghai |
Rewinding Tsav | Shanghai 4 KW |
EPC | Kcon |
Hloov Hwj chim | Ua hauv TaiWan |
Intermediate Relay | Schneider |
Breaker | Schneider |
Contactor | Schneider |
Tswj khawm | Schneider |
Anilox cov menyuam | Ua hauv Shanghai |
Unwinder Unit:

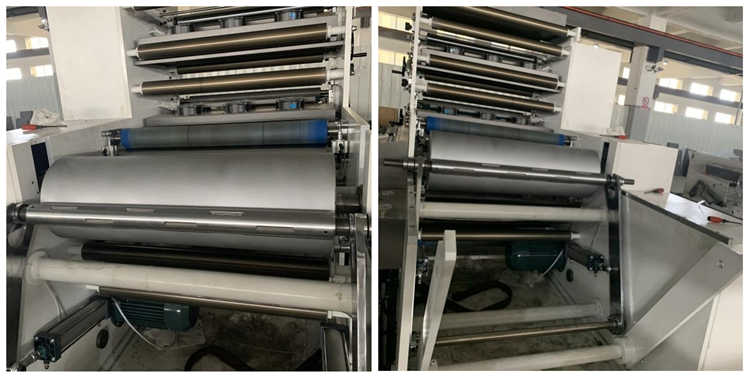

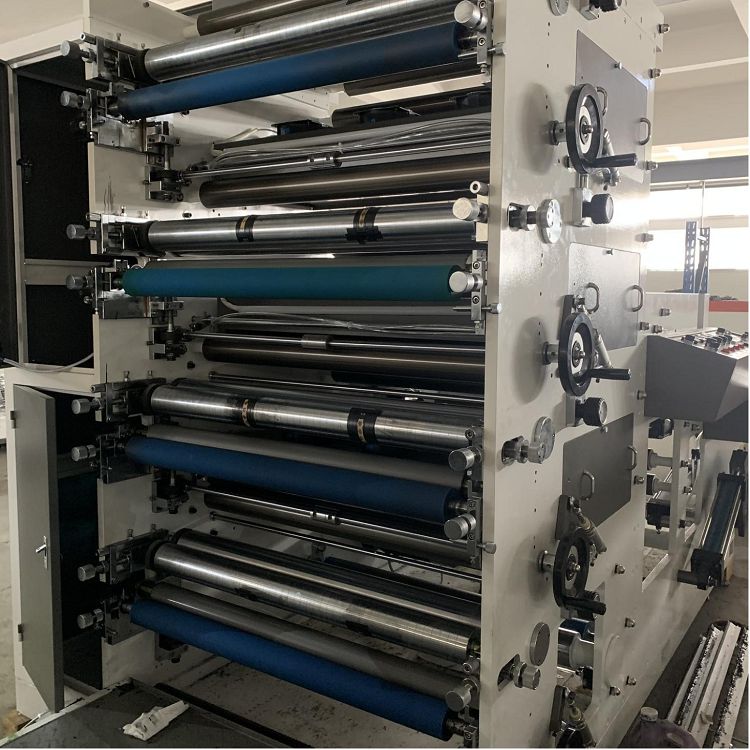

Lub tshuab luam ntawv
Tshuab ziab khaub ncaws
Rewinder Unit

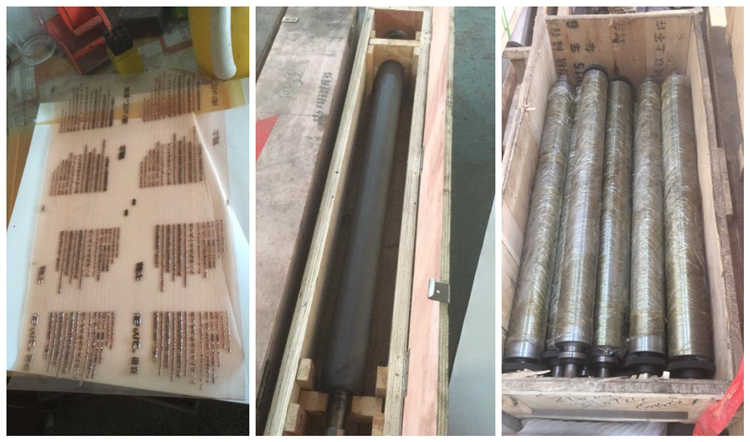

Cliche / Printing phaj Ceramic anilox roller Printing lub tog raj kheej
Qhov twg yog flexography luam ntawv ntawm mis nyuj lub thawv tshuab luam ntawv siv?
Nyob rau hauv flexography ntawm mis nyuj lub thawv tshuab luam ntawv, cov khoom pib tuaj nyob rau hauv daim ntawv ntawm ib tug yob uas yog dhau los ntawm ib tug series ntawm rotating saj zawg zog nyem daim hlau. Ib lub siab rau cov menyuam pub rau txhua qhov flex, xav tau ib qho flex rau txhua tus neeg luam tawm xim. Embossed daim hlau ua haujlwm ua ke los muab tag nrho cov xim rau cov khoom luam tawm kawg.
Qhov twg yuav tsum tau muaj cov txheej txheem ntxiv - xws li lamination, embossing lossis tuag-txiav - lawv tuaj yeem ua ke nrog kev luam ntawv hauv ib qho dhau los, ua kom nrawm nrawm thiab muaj peev xwm ntau dua li kev luam ntawv ib txwm muaj.
Flexography ntawm mis nyuj lub thawv tshuab luam ntawv kuj tso cai luam tawm ntawm ntau yam substrates, suav nrog:
ntaub ntawv
yas zaj duab xis
corrugated ntawv
non-woven npuag
hlau nto
multilayer nyias zaj duab xis composite
Kev hloov pauv ntawm cov khoom siv no tau ua rau nws siv ntau ntxiv hauv ntau yam khoom xws li:
self-adhesive daim ntawv lo
txiav thiab muab cov ntawv lo
ntim khoom noj
hnab yas
Nyob rau hauv no hais txog, mob siab rau flexographic tshuab luam ntawv tau tsim, muab efficiency thiab ceev kom zoo dua ntau lwm txoj kev luam ntawv. Flexographic presses ntawm mis nyuj lub thawv tshuab luam ntawv tuaj yeem luam ntawv yob lossis lub thawv sai sai hauv ntau yam ntaub ntawv yam tsis muaj kev cuam tshuam zoo, ua rau lawv yog ib txoj kev luam ntawv zoo tshaj plaws rau zaub mov, dej haus thiab cov khoom siv.
Peb yog cov kws tshaj lij Mis Box Printing Tshuab manufacturers hauv Suav teb. Peb tuaj yeem muab qhov zoo tshaj plaws Mis Box Printing Tshuab rau kev muag khoom thiab cov nqi sib tw. Yog tias koj tab tom nrhiav rau Milk Box Printing Tshuab lwm tus neeg, peb yog koj qhov kev xaiv zoo. Txawm hais tias Mis Box Printing Tshuab muaj nyob rau hauv Tshuag peb tuaj yeem muab kev pabcuam rau koj los ntawm customized Milk Box Printing Tshuab. Tiv tauj peb kom tau txais tus nqi ntawm Mis Box Printing Tshuab.
Cim npe nrov: mis nyuj lub thawv tshuab luam ntawv
