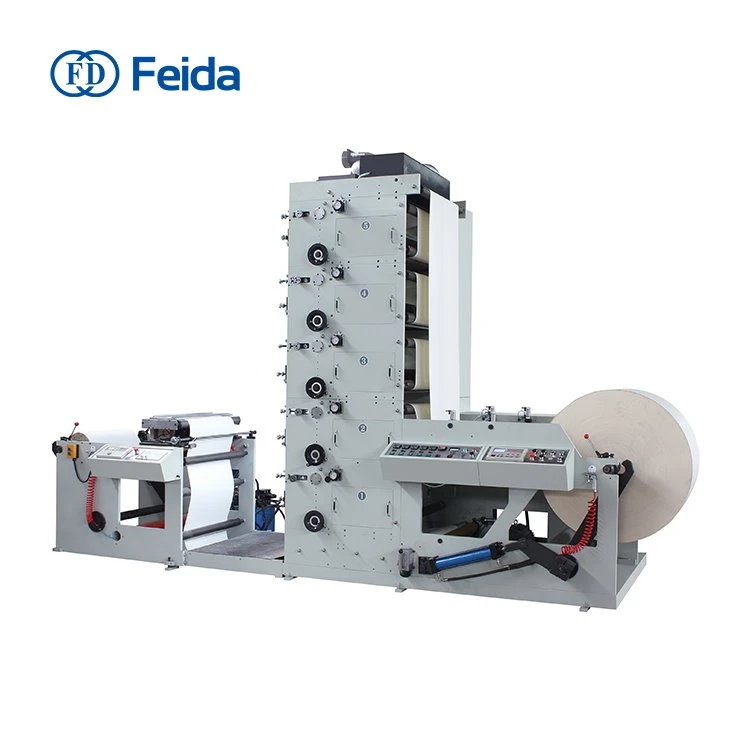

Stacked Flexo Printing Tshuab

Cov ntaub ntawv khoom

Lub tshuab luam ntawv flexo stacked tuaj yeem ua tiav cov txiaj ntsig ntawm ob sab luam ntawv, thiab tuaj yeem nqa tawm monochrome lossis ntau xim luam ntawv. Nws tuaj yeem luam tawm nrog ntau yam ntaub ntawv ntawm daim ntawv, txawm tias nyob rau hauv daim ntawv yob lossis daim ntawv nws tus kheej. Lub tshuab luam ntawv flexographic tseem tuaj yeem ua tiav ntau yam kev ua haujlwm thiab kev saib xyuas, xws li kev ua haujlwm, tuag-txiav thiab glazing ua haujlwm. Yog li ntawd, nws tuaj yeem pom tau tias nws qhov kev ua tau zoo yog qhov muaj zog heev, thiab ntsuas qhov nro kuj tseem ceeb heev. Cov txheej txheem ua haujlwm yog yooj yim heev uas txuag cov neeg siv sijhawm ntau.

Nta

Lub tshuab luam ntawv stacked flexo tuaj yeem ua kom yooj yim rau kev teeb tsa cov cuab yeej siv thiab cov cuab yeej siv, thiab tuaj yeem nqa cov khoom sib koom ua ke thiab ua tiav tom qab luam ntawv rau polishing, txiav zaj duab xis, thiab lwm yam. ntsuas qhov kev txhawb zog nrog tus cwj mem dyne kom raug. Lub tshuab no muaj cov txheej txheem siab ntawm cov txheej txheem kev kub ceev sib xyaw xim xim luam ntawv, kev sib xyaw ntawm cov khoom, cov khoom siv dav dav, thiab kev tsim kho tshiab hauv cov qauv tsim.

A. Paub meej

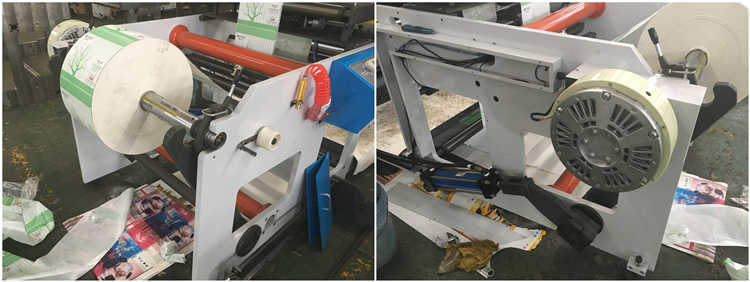

1.Unwinding unit thiab rewinding unit
• Tsis siv neeg loading thiab unloading los ntawm hydraulic
• Sib nqus hmoov li nres, lub cev muaj zog li clutch
2.Auto web guiding
• Splicing rooj
• Kev kuaj xyuas hom: kev kuaj xyuas ntug
• Precision: ±0.1mm
3.Pub system
• Roj hmab rollers rau kev pub mis

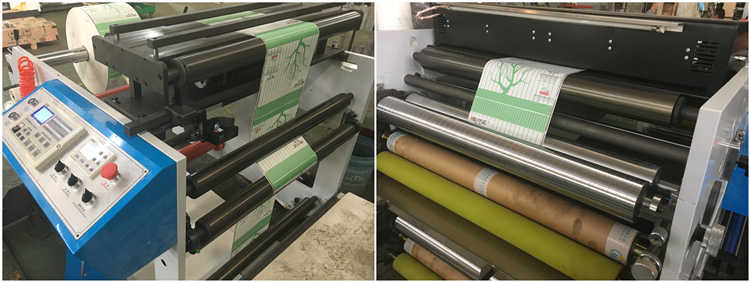

4.Printing unit 4 units
• Helical iav
• Ceramic anilox cov menyuam: ib txheej (4 pcs)
• Lub tog raj kheej luam ntawv: ib txheej (4 pcs)
• Ceramic anilox roller: LPI nyob ntawm tus neeg yuav khoom
• Lub tog raj kheej luam ntawv: rov ua dua nyob ntawm tus neeg yuav khoom
• Ib sab kws kho mob hniav
• Ink case
• Iav: cp1/8
5.Qhov system ziab
• IR
6.uto nres muaj nuj nqi

7.Meter txee
8. Yooj yim phaj mounter

B. Technical parameter
1 Max unwinding txoj kab uas hla: 1200mm
2 Kev luam ntawv rov ua dua: 250mm -580mm (79T - 182T)
3 Max dav: 950mm
4 Max luam ntawv dav: 950mm
5 Fais fab mov: 380V 3PH 50Hz
6 Tag nrho lub zog: 30KW
7 Tshuab ceev: 0-80m/min
8 Printing phaj thickness: 1.7mm
9 Ob chav kua nplaum kais thickness: 0.38mm
10 Printing precision: ± 0.15mm
11 Cua ncej txoj kab uas hla: 3 nti

C. Configuration

Unwinding ib feem nrog 20kg sib nqus hmoov nres

Tsis siv neeg nro tswj qhov system ntawm unwinding thiab rewinding ib feem

Nws pib web guiding system nrog splicing rooj, Printing ib feem nrog number case roller, ceramic anilox roller, luam ntawv cov menyuam, thiab txhawb cov menyuam

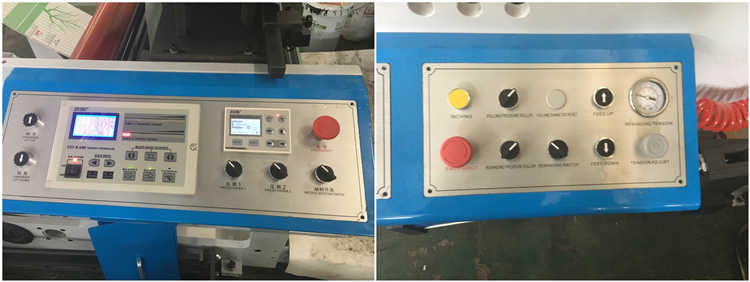

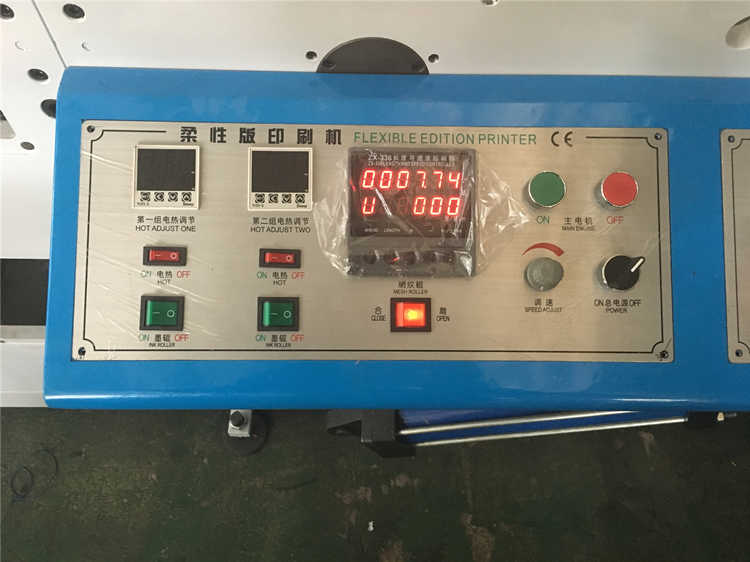

Main tswj vaj huam sib luag nrog kub xws li, ntev txee thiab ceev tswj

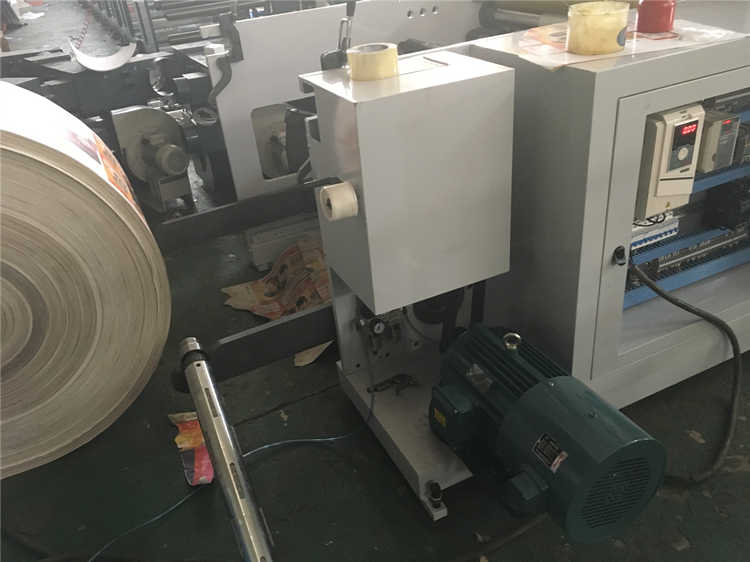

Rewinding ib feem nrog cais lub cev muaj zog 7.5kw thiab cais inverter li clutch

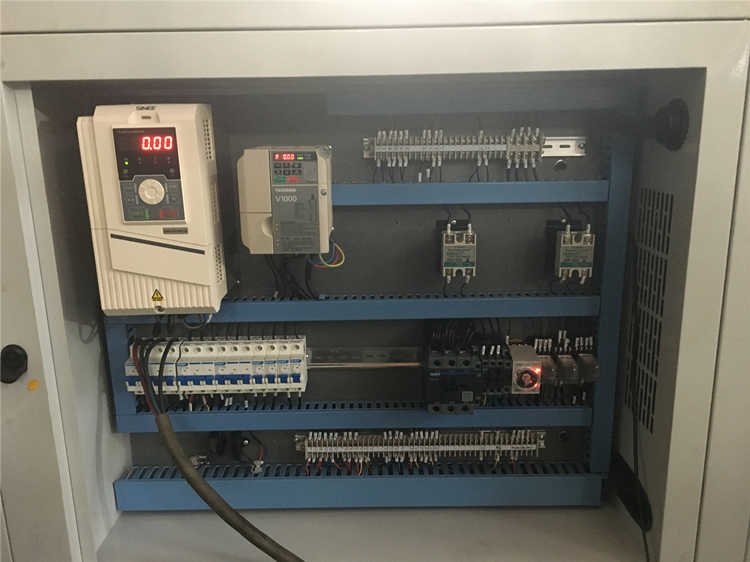

Qhov hluav taws xob:

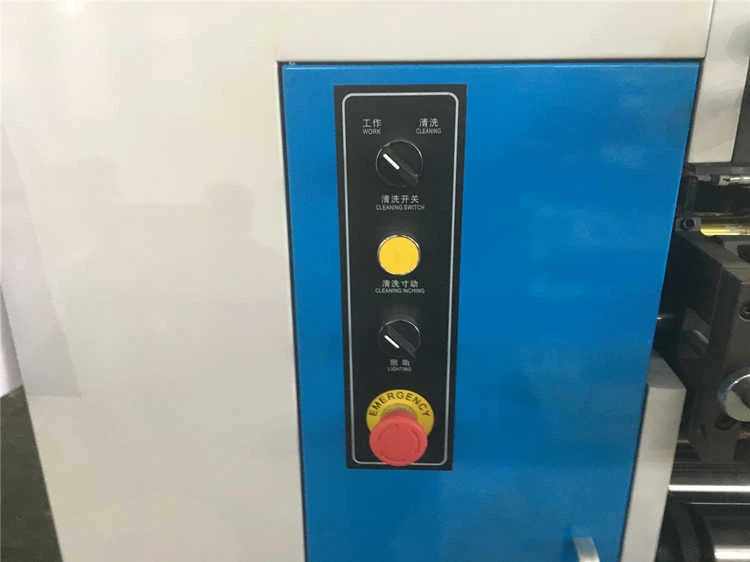

Ntxuav hom tom qab ua haujlwm tiav

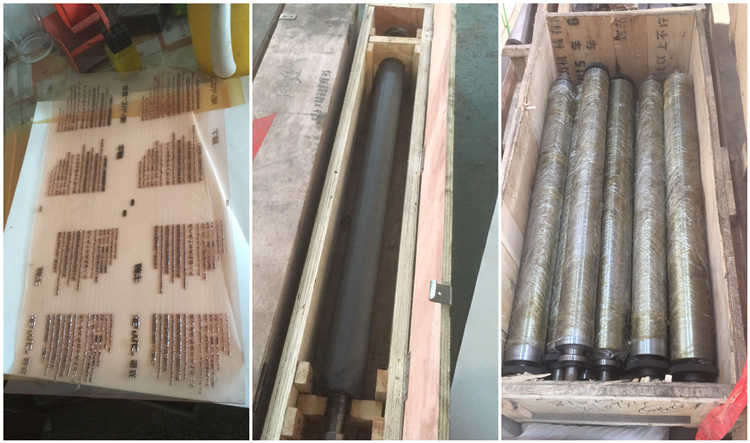

Cliche / Printing phajCeramic anilox rollerPrinting lub tog raj kheej

Qhov zoo ntawm Flexo Printing Tshuab

Stacked flexo luam ntawv yog txheej txheem lag luam uas hloov tau yooj yim tsa saum npoo daim hlau siv los tsim cov ntawv luam tawm ntawm ntau yam ntaub ntawv. Ntxiv nrog rau cov ntawv sau, stacked flexo luam ntawv kuj tseem ua tau ntawm cov ntawv, cov yeeb yaj kiab hlau, yas, thiab cov ntaub. Ntawm ntau hom kev daws teeb meem, peb siv cov txheej txheem flexo luam ntawv los tsim cov ntawv sau rau cov neeg siv khoom.

Flexographic luam ntawv yog txheej txheem kev lag luam uas hloov tau yooj yim tsa saum npoo daim hlau siv los tsim cov ntawv luam tawm ntawm ntau yam ntaub ntawv. Ntxiv nrog rau cov ntawv sau, flexographic luam ntawv kuj tseem ua tau ntawm cov ntawv, cov yeeb yaj kiab hlau, yas, thiab cov ntaub. Ntawm ntau hom kev daws teeb meem, peb siv cov txheej txheem flexo luam ntawv los tsim cov ntawv sau rau cov neeg siv khoom. Stacked flexo luam ntawv muaj ntau yam zoo.

Superior kev ua tau zoo

Feem ntau, nws cov versatility enables manufacturers los tsim cov ntawv vibrant ntawm ntau yam ntaub ntawv. Nov yog qee qhov laj thawj vim li cas flexo luam ntawv yog txoj kev nyiam luam ntawv rau feem ntau daim ntawv xaj

1. Qhov ntau thiab tsawg - Qhov no txhais tau hais tias cov ntawv loj loj tuaj yeem siv tau, lossis kom txuag tau sijhawm, ntau cov ntawv luam tawm tuaj yeem luam tawm tib lub sijhawm.

2. Kev xaiv dav ntawm cov substrates - txhua yam los ntawm cov yeeb yaj kiab hlau thiab txhuas ntawv ci rau acetate thiab ntawv tuaj yeem luam tawm nrog flexographic presses.

3. Multifunctional inks - flexographic presses tuaj yeem siv ntau hom inks, suav nrog dej-raws li, fluorescent, nws yog xim hlau thiab UV-kho inks.

Kev xaiv tus nqi zoo rau kev ua haujlwm loj

1. Kev siv flexographic presses txhais tau hais tias muaj kev nkag siab thiab nrawm. Qhov no ua rau cov nqi tsim khoom zoo heev.

2. Kev kub ceev - Thaum teeb tsa, flexo cov ntawv yuav raug luam tawm ntawm kev kub ceev. Qhov no yog ua tiav los ntawm kev siv ceev ceev kom qhuav, tsis muaj viscosity inks, precision pwm thiab cov cuab yeej siv siab heev.

3. Tus nqi qis - inks siv nyob rau hauv flexographic presses yog pheej yig thiab ntau tus phooj ywg ib puag ncig. Flexo inks kev lag luam muab cov xim zoo nkauj.

4. Inline finishing - Ntxiv nrog rau topcoats thiab lamination, turret rewinders, ntawv thiab folding tshuab tau ntxiv rau qhov chaw ua tiav ntawm qhov kawg ntawm cov xovxwm kom cov khoom tsis tu ncua.

Zhejiang Feida Machinery Co., Ltd yog ib txoj haujlwm tseem ceeb hauv Tuam Tshoj Stacked Flexo Printing Tshuab lag luam. Peb yog cov kws tshaj lij Stacked Flexo Printing Tshuab tuam ntxhab thiab cov muag khoom, tshwj xeeb hauv kev muab cov tshuab tuag txiav zoo nrog tus nqi sib tw. Yog tias koj tab tom nrhiav rau Stacked Flexo Printing Tshuab factories, thov koj xav tiv tauj peb, peb tuaj yeem muab cov kws tshaj lij Stacked Flexo Printing Tshuab daws teeb meem.Txawm hais tias Stacked Flexo Printing Tshuab muaj nyob rau hauv Tshuag peb tuaj yeem muab cov kev pabcuam customized Stacked Flexo Printing Tshuab. Peb sov siab txais tos koj mus yuav Stacked Flexo Printing Tshuab rau muag ntawm no los ntawm peb lub hoobkas.
