Cov ntaub ntawv khoom

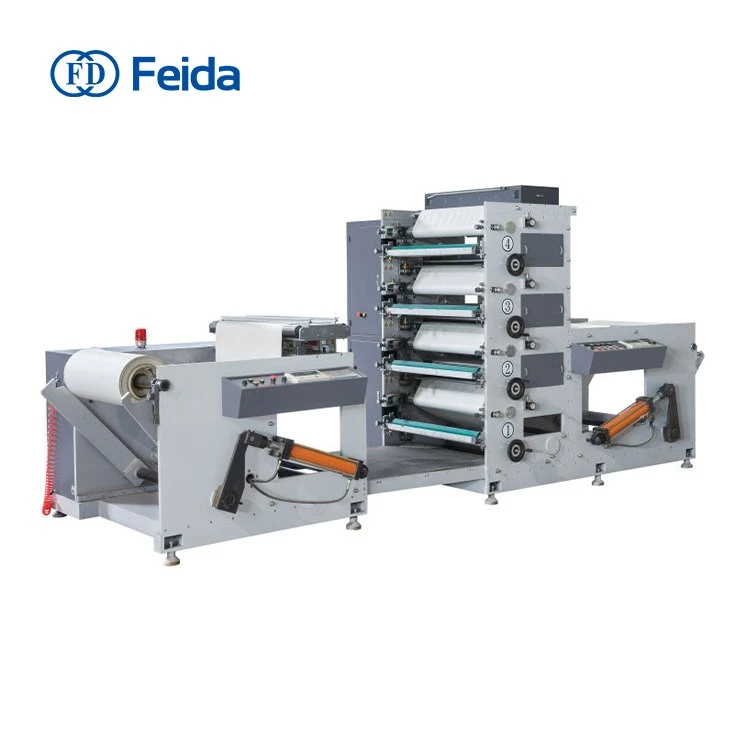

Water-ink Printing Tshuab tuaj yeem luam cov xim sib txawv thiab cov duab ntawm cov khoom siv. Txhua pawg luam ntawv tau nruab nrog lub tshuab ziab khaub ncaws infrared kom qhuav cov number case sai. Nruab nrog 6 teeb, tswj los ntawm tus kheej hloov pauv. Lub tshuab tau nruab nrog lub tshuab cua kub kom paub meej tias qhov ziab kom zoo. Lub tshuab kuj muaj cov cuab yeej winding, uas yog tsav los ntawm lub cev muaj zog los xyuas kom meej lub zog rewinding thiab ruaj khov. Cov khoom lag luam muaj txiaj ntsig zoo, yog li nws tuaj yeem luam tawm ntau ntau, yog li ua kom luv luv ntawm qhov project.
Nta
1.Water-ink Printing Tshuab muaj qhov zoo ntawm kev ntseeg siab, kev ruaj ntseg siab thiab kev ua haujlwm yooj yim.
2.Lub tshuab no tsis tsuas yog txhim kho kev ua haujlwm ntawm kev ua haujlwm thiab txo kev siv zog, tab sis kuj txuag lub zog thiab txo kev noj.
3.Lub ntsiab lub cev muaj zog txais kev hloov pauv ntau zaus kom ntseeg tau tias lub tshuab ua haujlwm tas mus li thiab ruaj khov.

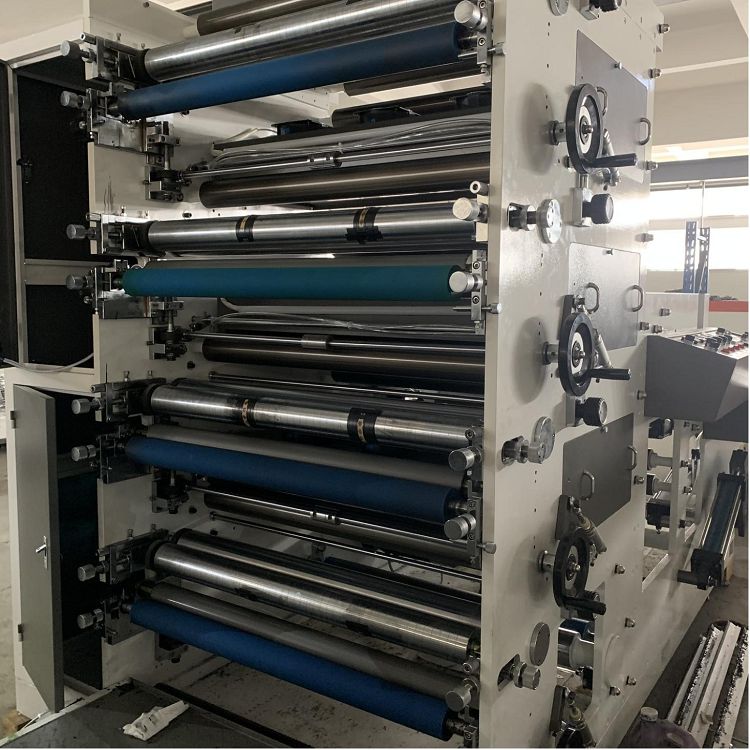

4.Tag nrho cov rollers ntawm lub tshuab yog chrome plated, uas tuaj yeem txhim kho lub zog, ua kom lub tshuab ua tau zoo thiab ruaj khov, thiab muaj lub neej ua haujlwm ntev.
Specification
TSIS MUAJ. | Qauv | 850 |
1 | Max Unwinding Diameter | 1400 hli |
2 | Max Rewinding Diameter | 1400 hli |
3 | Luam Ntawv Circumference | 254--508 hli |
4 | Max Web dav | 860 |
5 | Max Printing Dav | /850 |
6 | Fais fab mov | 380V 3PH 50HZ |
7 | Luam Ntawv Ceev | 5-100m/min |
8 | Phaj thickness | 1.7mm ib |
9 | Daim kab xev thickness | 0.38 hli |
10 | Thickness ntawm daim ntawv | 40-400g |
11 | Printing precision | ± 0.12 hli |
12 | Qhov hnyav | Txog 4800 |
13 | Tshuab luam ntawv | 1/8 np |
14 | Qhuav | Infrared Tshuab ziab khaub ncaws nrog 6pcs teeb |
15 | Rewinding | Nto rewinding nrog cov menyuam loj |
16 | Qhov siab tshaj plaws ntawm cov cua sov tshuab ziab khaub ncaws | 90 degree |
17 | Main lub cev muaj zog | 7.5 kWm |
18 | Tag nrho lub zog | 37 kWm |
19 | Dimension | 5.2*1.85*3.1m |
Main Technical Parameters Configuration
Lub npe | Tus neeg muab khoom |
Unwinding Tension | CHUYIN TECH |
Rewinding Tension Converter | Inovance |
Main lub cev muaj zog converter | Schneider |
Main Tsav | 7.5KW Shanghai |
Rewinding Tsav | Shanghai 4 KW |
EPC | Kcon |
Hloov Hwj chim | Ua hauv TaiWan |
Intermediate Relay | Schneider |
Breaker | Schneider |
Contactor | Schneider |
Tswj khawm | Schneider |
Anilox cov menyuam | Ua hauv Shanghai |
Tuam txhab piav qhia:
Yuav kom ua tau raws li qhov xav tau ntawm cov neeg siv khoom, Feida Machinery Co., Ltd yeej ib txwm ua kom zoo rau ntau yam thiab txhim kho qhov zoo. Muaj ob cov khoom lag luam, Tsis Siv Neeg Roll Flatbed Tuag Txiav Tshuab Luam Ntawv thiab Puv Tsis Siv Neeg Stripping Tshuab, uas ncav cuag qib siab hauv tsev. Feida Company tau dhau daim ntawv pov thawj ntawm CE thiab daim ntawv pov thawj ntawm Ntshuam thiab xa tawm daim ntawv tso cai. Peb cov khoom tau txais tos tsis yog los ntawm cov neeg siv khoom hauv tsev nkaus xwb tab sis kuj xa tawm mus rau Tebchaws Meskas, Tim Nkij teb chaws, South thiab North America, Mid-est, Southeast Asia thiab ntau lub tebchaws thiab cheeb tsam.
 | ||

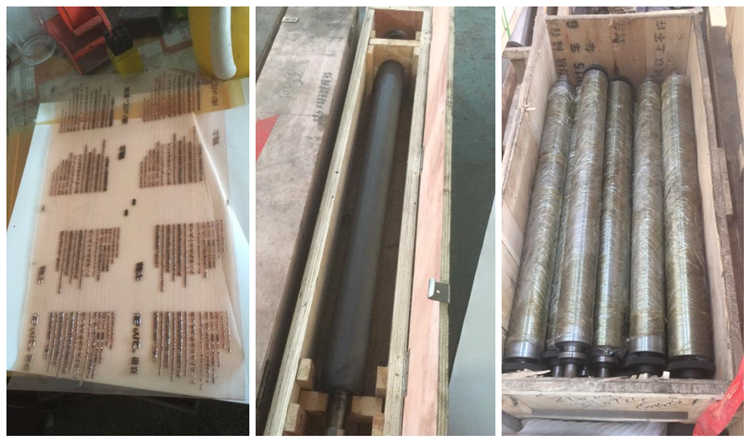

| Cliche/Printing phaj | Ceramic anilox roller | Lub tog raj kheej luam ntawv |
Vim li cas Water-ink Printing zoo dua?
Niaj hnub no, ntau tus kws tshaj lij luam ntawv tau hloov mus rau cov dej-raws li inks los tshuaj ntsuam luam ntawv textiles. Vim li cas Water-ink Printing thiaj li nrov? Dab tsi yog qhov zoo ntawm Water-ink Printing? Vim li cas dej-based number case zoo dua? Nov yog tsib lub laj thawj:
1. Eco-phooj ywg number case printing
Plastisol inks yog raws li PVC cob thiab phthalate plasticizers. Lawv feem ntau yog ntxuav los ntawm petrochemical cov kuab tshuaj. Nyob rau hauv sib piv, dej-raws li number case printing yog kiag li tsis muaj PVC thiab phthalates, ozone-depleting tshuaj thiab aromatics. Water-ink printing yog heev Eco-phooj ywg!
2. Water-ink printing khoom xav tias mos dua
Tsis zoo li cov thermosetting inks, cov khoom lag luam luam ntawv dej yog softer. Dej-raws li tshuab luam ntawv tuaj yeem ua kom zoo adhesion, tso cai rau cov ntawv luam tawm maj mam ua rau cov fibers thiab cov ntaub tuaj yeem tswj tau nws lub ntuj softness. Water-ink printing cov khoom muab koj cov ntawv luam tawm uas tsis muaj qhov sib piv ntawm softness thiab yooj. Cov khaub ncaws thiab cov khoom siv hauv tsev luam tawm nrog cov dej ua kua dej ua rau tus neeg hnav zoo dua thiab muaj kev nyab xeeb dua.
3. Kev luam ntawv zoo
Water-ink printing prints tsim cov ntawv luam ntev ntev nrog cov ntsiab lus tsis zoo thiab cov npoo ntse.
4. Zoo rau koj txoj kev noj qab haus huv
Vim tias dej-tus cwj mem tsis muaj cov tshuaj phem, cov ntawv luam dej-tus cwj mem muaj kev nyab xeeb tsis yog rau ib puag ncig nkaus xwb tab sis kuj rau cov neeg siv khoom thiab cov neeg siv luam tawm.
5. Yooj yim los ntxuav
Water-ink printings tau yooj yim ntxuav nrog dej tom qab luam ntawv. Tsis muaj cov tshuaj phem nyob hauv cov ntawv luam dej-ink
6. Kev lag luam ntau dua
Cov kev cai hauv ntau lub tebchaws tau txwv lossis txwv tsis pub siv phthalates hauv cov khaub ncaws menyuam yaus. Yog li ntawd, yog tias koj xav muab cov khaub ncaws me nyuam luam tawm, koj yuav tsum siv cov dej-raws li inks.Qhov no txhais tau hais tias siv dej-tus cwj mem los luam tawm yuav ua rau koj muaj sijhawm ntau rau koj txoj kev lag luam.
Siv cov ntawv luam dej-xim luam ntawv, kev luam ntawv zoo tshaj plaws, thiab qhov tseem ceeb tshaj plaws, thiab nws yog eco-friendly. Kev siv dej-raws li tus number case thiab dej-ink tshuab luam ntawv yeej tsis tau yooj yim dua lossis muaj txiaj ntsig zoo dua. Yog tias koj tseem tsis tau siv dej-ink priting li ntawd, koj yuav tsum hloov mus rau lub tshuab luam ntawv dej kom rov pib koj lub lag luam luam ntawv sai li sai tau.
Peb yog cov kws tshaj lij dej-tus cwj mem luam ntawv tshuab manufacturers hauv Suav teb. Peb tuaj yeem muab qhov zoo tshaj plaws Water-ink Printing Tshuab rau kev muag khoom thiab tus nqi sib tw. Yog tias koj tab tom nrhiav rau Water-ink Printing Tshuab lwm tus neeg, peb yog ib qho kev xaiv zoo. Txawm hais tias Water-ink Printing Tshuab muaj nyob rau hauv Tshuag peb tuaj yeem muab kev pabcuam rau koj los ntawm customized Water-ink Printing Machine. Tiv tauj peb kom tau txais tus nqi ntawm Water-ink Printing Tshuab
